1
Engine displacement
50
2
Model
CLASSIC
3
Year
1999
4
Trim
Classic
5
Parts Catalog
Right crankcase
6

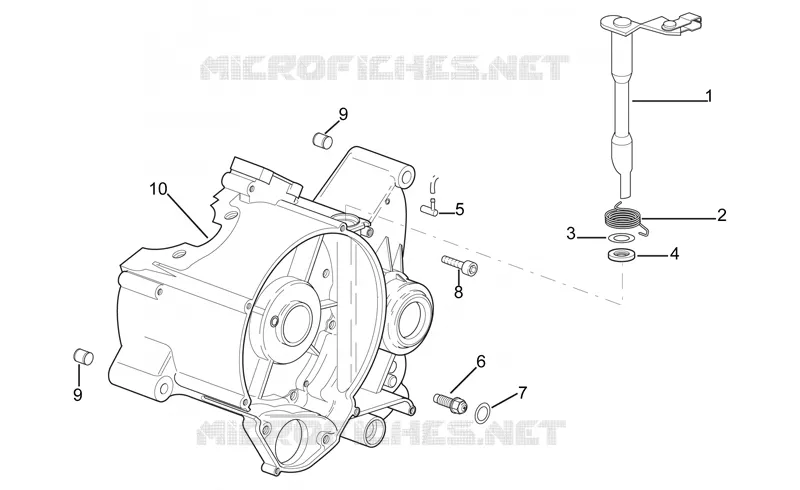

Parts Diagram
Parts Catalog
Engine II
by
Left crankcase
Right crankcase
1
2
3
4
5
6
7
8
9
9
10
1
Clutch lever cpl.
AP8206257
Not Available
2
Clutch lever return spring
AP8206259
Not Available
3
Blue steel washer D15x25x0,5
AP8206278
Not Available
4
Oil seal D15x24x5
AP8509179
Not Available
5
Oil breather union
AP8206340
Not Available
6
Neutral indicator switch+seal
AP8206296
Not Available
6
Neutral indicator switch+seal
AP8206429
Not Available
7
Gasket 9,9x16x1
AP8206288
Not Available
8
Screw M6x40
AP8206276
Not Available
9
Crankcase pin D11,5x12
AP8206295
Not Available
10
Crankcase assy
AP8206378
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
