1
Engine displacement
50
2
Model
CLASSIC
3
Year
1995
4
Trim
Classic
5
Parts Catalog
Rear brake
6

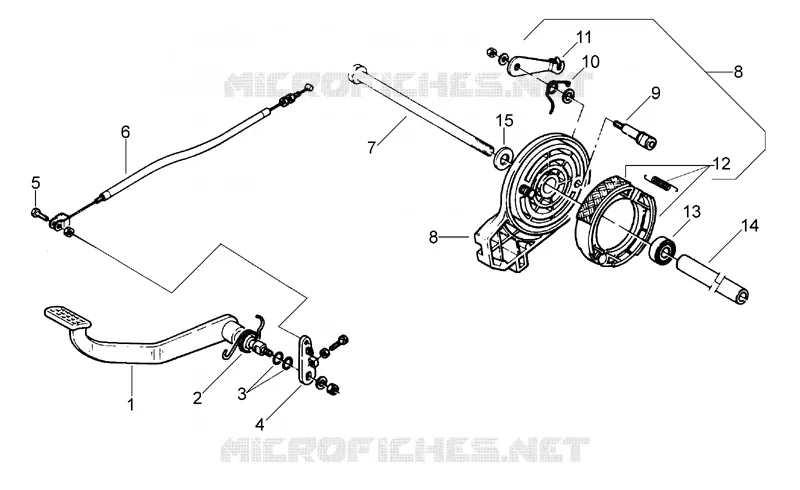

Parts Diagram
Parts Catalog
Rear wheel
by
Headlight
Rear brake
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
1
Rear brake lever, chromed
AP8232650
Not Available
2
Coil torsion spring *
AP8221122
Not Available
3
O-ring 3056
AP8120196
Not Available
4
R.brake lever trans.plate
AP8232747
Not Available
5
Screw
AP8152134
Not Available
6
Rear brake cable
AP8214096
Not Available
7
Rear wheel spindle
AP8225266
Not Available
8
Comp rear shoe plate
AP8225255
Not Available
9
Cam
AP8213181
Not Available
10
Cam return spring
AP8213182
Not Available
11
Cam control lever
AP8213180
Not Available
12
Brake shoes+springs
AP8213179
Not Available
13
Bearing
AP8225123
£40,42 Unit Price incl. VAT
14
Spacer
AP8121792
Not Available
15
Plain washer
AP8225209
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
