1
Engine displacement
50
2
Model
CLASSIC
3
Year
1995
4
Trim
Classic
5
Parts Catalog

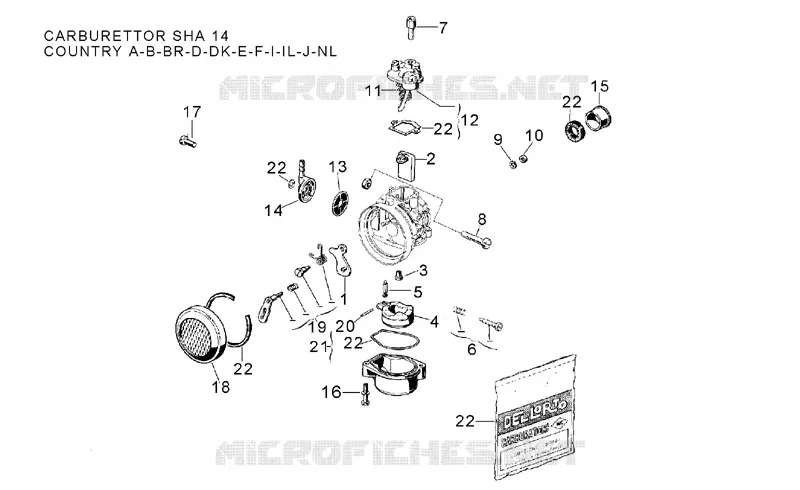

Carburettor II
6
Parts Diagram
Parts Catalog
Carburettor I
by
Carburettor III
Carburettor II
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
22
22
22
22
1
Air valve
AP8222663
Not Available
2
Gas valve
AP8222655
Not Available
2
Gas valve
AP8222654
Not Available
2
Gas valve
AP8222678
Not Available
3
Main jet
AP8222640
Not Available
3
Main jet 52
AP8222638
£4,81 Unit Price incl. VAT
3
Main jet 56
AP8222639
Not Available
4
Float gr.3,5
AP8222658
Not Available
5
Fuel closing needle
AP8222643
Not Available
6
Gas valve adj.screw kit
AP8222650
Not Available
7
Wire tensioner screw
AP8222631
£5,99 Unit Price incl. VAT
8
Collar clamping screw kit
AP8222652
Not Available
9
Air rod nut washer
AP8222642
Not Available
10
Air rod nut
AP8222660
Not Available
11
Gas valve return spring
AP8222644
Not Available
12
Valve cover
AP8222676
Not Available
13
Fuel filter
AP8222656
Not Available
14
Fuel pipe union cap
AP8222659
£13,13 Unit Price incl. VAT
15
Insulating reduction 21-18
AP8222632
Not Available
16
Float chamber fixing screw
AP8222634
Not Available
17
Cap fixing screw
AP8222645
£1,63 Unit Price incl. VAT
18
Filtering element
AP8222657
Not Available
19
Air valve control rod kit
AP8222653
Not Available
20
Float pin
AP8222662
Not Available
21
Float chamber
AP8222635
Not Available
22
Gasket envelope
AP8222679
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
