Rear cylinder timing system for Shiver from 2014

Free shipping for all orders to United Kingdom over £150! See conditions.

Rear cylinder timing system

1

Rear intake camshaft

82979R

£275,95 Unit Price incl. VAT

2

Rear exhaust camshaft

82980R

£283,88 Unit Price incl. VAT

3

Axial lock plate

878560

£13,70 Unit Price incl. VAT

4

Timing system gear cpl.

8745964

£239,44 Unit Price incl. VAT

5

Spacer screw

974228

£12,19 Unit Price incl. VAT

6

Rear timing system gear cpl.

849910

Not Available

7

Thrust washer

849771

£1,12 Unit Price incl. VAT

8

Nut M15x1 SX

849722

£5,32 Unit Price incl. VAT

9

Special screw

874591

Not Available

10

Safety washer

849817

£3,72 Unit Price incl. VAT

11

Gasket ring

873233

£1,27 Unit Price incl. VAT

12

Cylinder head assy.

83038R

£1 485,77 Unit Price incl. VAT

13

Screw w/ flange

B016191

£1,58 Unit Price incl. VAT

14

Camshaft chain

849827

£171,90 Unit Price incl. VAT

15

Chain guide plate

871798

£17,38 Unit Price incl. VAT

16

Chain tensioner rod

871748

£23,32 Unit Price incl. VAT

17

Screw

874185

£2,36 Unit Price incl. VAT

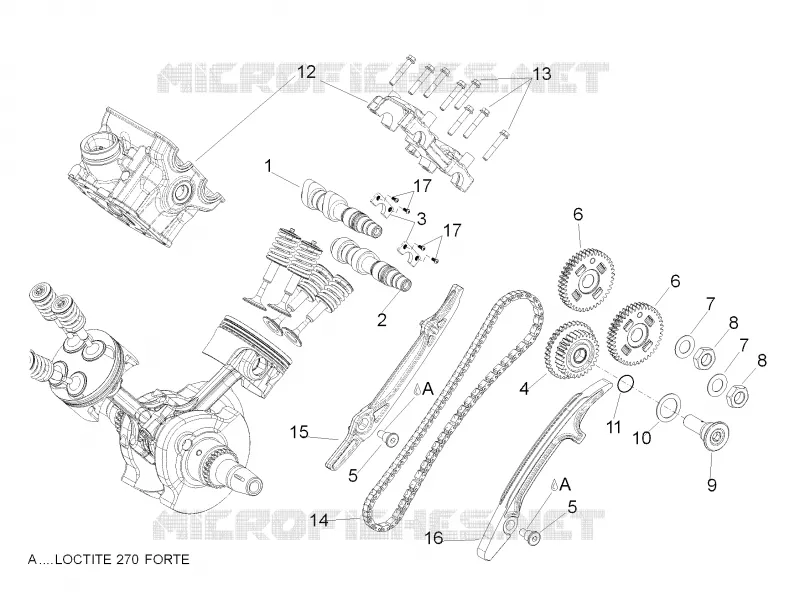

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
