1
Engine displacement
750
2
Model
SHIVER
3
Year
2016
4
Trim
Shiver
5
Parts Catalog
Front master cilinder
6
Parts Diagram
Parts Catalog
Frame II
by
Ignition unit
Front master cilinder
1
2
3
4
5
6
7
7
8
9
10
1
Front master cilinder D15,87
896385
Not Available
1
Front master cilinder D15,87
896384
£138,31 Unit Price incl. VAT
2
Brake lever
856048
Not Available
3
Cover cpl.
896336
£37,93 Unit Price incl. VAT
4
U-bolt
856050
£9,41 Unit Price incl. VAT
5
Front brake hose
859782
£146,16 Unit Price incl. VAT
5
Front brake hose
898007
Not Available
6
Oil pipe screw
AP8113003
£2,08 Unit Price incl. VAT
7
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
8
stop Button
642032
£10,26 Unit Price incl. VAT
9
Rubber spacer *
AP8220135
£6,46 Unit Price incl. VAT
10
Diaphragm
858423
£47,82 Unit Price incl. VAT

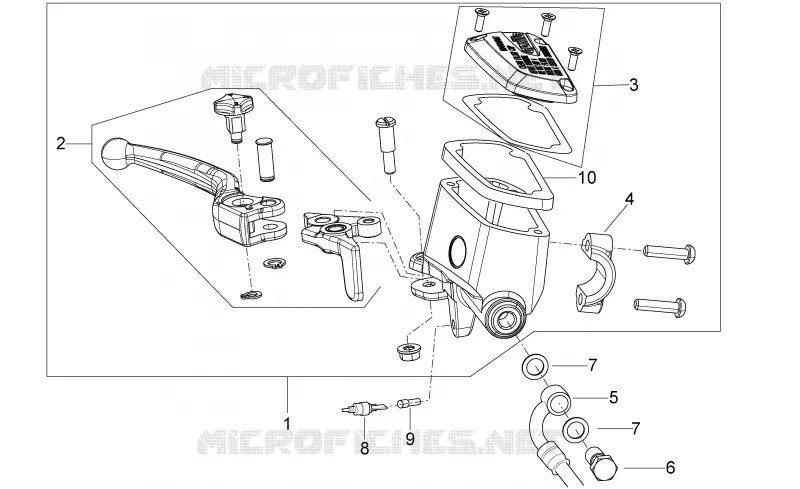

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
