Clutch II for APRILIA Shiver from 2010

Free shipping for all orders to United Kingdom over £150! See conditions.

Clutch II

1

Clutch housing, complete

872129

Not Available

1

Clutch housing, complete

873706

Not Available

2

Washer

974320

£6,29 Unit Price incl. VAT

3

Clutch hub

873715

Not Available

3

Clutch hub

872125

Not Available

4

Clutch pressure plate

873719

£196,12 Unit Price incl. VAT

4

Clutch pressure plate

872213

£137,53 Unit Price incl. VAT

5

Clutch spring

873722

Not Available

5

Clutch spring

879421

£10,67 Unit Price incl. VAT

6

Washer

873717

£4,90 Unit Price incl. VAT

7

Hex socket screw M6

876595

£6,53 Unit Price incl. VAT

7

Hex socket screw M6

873718

£4,02 Unit Price incl. VAT

8

Nitrurated driven clutch disc

877131

Not Available

8

Nitrurated driven clutch disc

873725

£47,10 Unit Price incl. VAT

9

Kit clutch disc

860329

£94,61 Unit Price incl. VAT

9

Centre clutch plate kit

B046129

Not Available

10

Driving clutch disc

873724

£40,26 Unit Price incl. VAT

10

Driving clutch disc

872126

Not Available

11

Driven clutch disc

872127

£8,12 Unit Price incl. VAT

11

Driven clutch disc

873723

£11,76 Unit Price incl. VAT

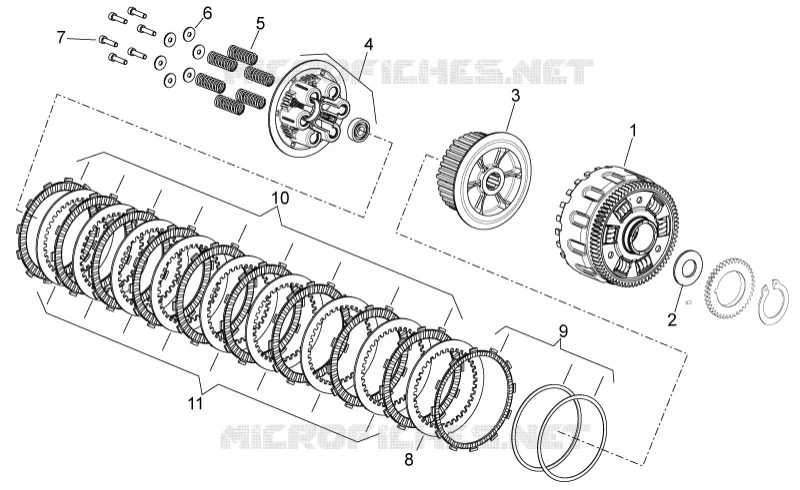

Find the detailed Clutch II APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
