1
Engine displacement
50
2
Model
CLASSIC
3
Year
1992
4
Trim
Classic
5
Parts Catalog

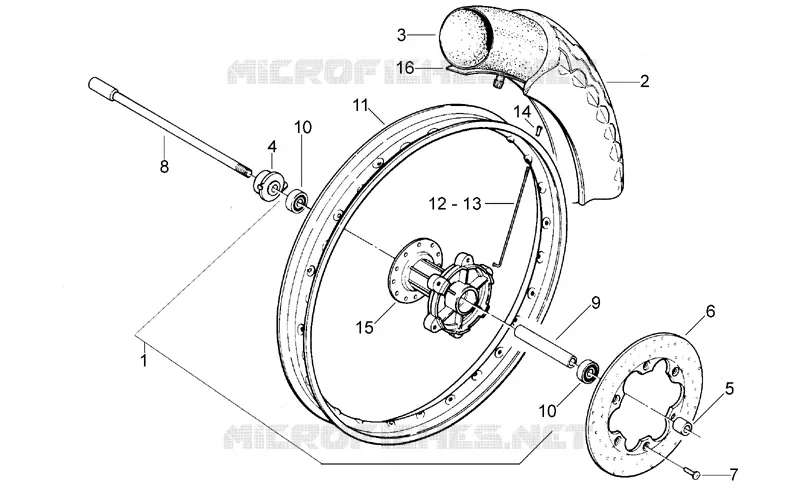

Front wheel
6
Parts Diagram
Parts Catalog
Exhaust unit
by
Front brake caliper
Front wheel
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
1
Front wheel
AP8208486
Not Available
1
Front wheel
AP8208320
Not Available
1
Front wheel, stainless steel
AP8208400
Not Available
2
Tyre
0000000
Not Available
3
Tyre
0000000
Not Available
4
Odometer gear
AP8201538
Not Available
5
Spacer
AP8225253
Not Available
6
Front brake disc D230
AP8213270
Not Available
7
Low head socket screw
AP8125508
Not Available
8
Front hub pin
AP8225252
Not Available
9
Bearing internal spacer
AP8125533
Not Available
10
Bearing
AP8225148
Not Available
11
Rear wheel, stain.
AP8208352
Not Available
11
Front wheel, chromed
AP8208181
Not Available
12
Spoke 3x204
AP8208483
Not Available
12
Spoke 3x216 105°
AP8208182
£3,89 Unit Price incl. VAT
13
Spoke 3x218 103°
AP8208185
Not Available
13
Spoke 3x201
AP8208484
Not Available
14
Nipples D3
AP8208410
£2,04 Unit Price incl. VAT
15
Front hub
AP8225251
Not Available
16
Wheel flap 18"
AP8209032
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
