1
Engine displacement
1000
2
Model
RSV4
3
Year
2017
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog
Air box
6
Parts Diagram
Parts Catalog
Crankcases I
by
Plate set / Various

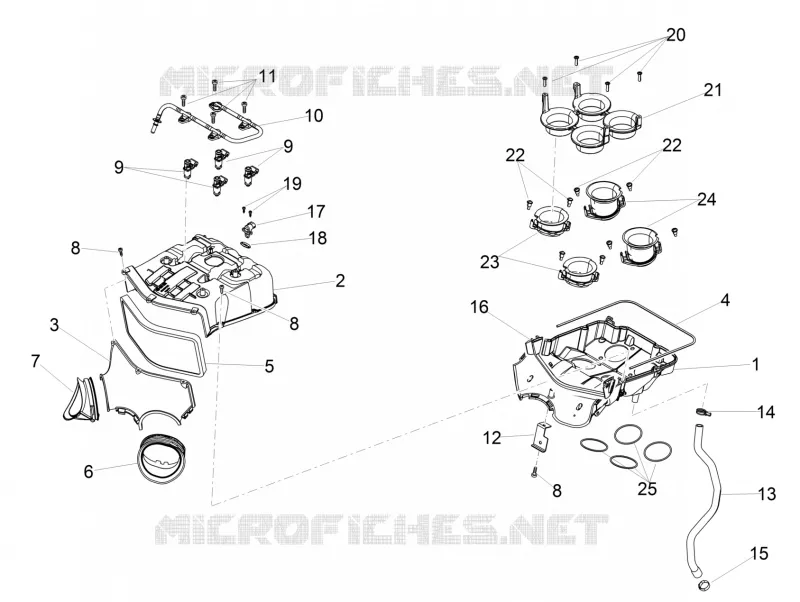

Air box
8
8
7
8
3
2
1
6
15
14
13
12
25
24
23
22
22
21
20
19
16
17
18
9
9
11
10
5
4
1
Filter housing base
2B001216
Not Available
2
Filter housing cover
2B003660
£52,40 Unit Price incl. VAT
3
Upper intake
2B001218
£10,06 Unit Price incl. VAT
4
Air filter housing seal
2B001217
£16,99 Unit Price incl. VAT
5
Air filter
2B001072
Not Available
6
Intake hose LH
2B001413
£11,63 Unit Price incl. VAT
7
Intake hose RH
2B001412
£11,63 Unit Price incl. VAT
8
Phillips screw, SWP M5x20
AP8152329
£1,80 Unit Price incl. VAT
9
Complete injector
1A0078665
Not Available
10
Upper fuel rail
858807
£202,93 Unit Price incl. VAT
11
Phillips screw, SWP M5x20
AP8152329
£1,80 Unit Price incl. VAT
11
Self-tap screw 5x14
AP8150509
£1,94 Unit Price incl. VAT
12
Fixing bracket
2B001481
£12,29 Unit Price incl. VAT
13
pipe blow-by
858808
£57,88 Unit Price incl. VAT
14
Hose clamp
CM002912
£0,24 Unit Price incl. VAT
15
Hose clamp
CM001927
£2,08 Unit Price incl. VAT
16
Air filter closing
2B001219
£4,28 Unit Price incl. VAT
17
Air temp. Sensor
GU30729330
£122,47 Unit Price incl. VAT
18
Gasket
GU30027931
£3,25 Unit Price incl. VAT
19
Self-tap screw 2,9x12
AP8150421
£1,88 Unit Price incl. VAT
20
Phillips screw, SWP M5x20
AP8152329
£1,80 Unit Price incl. VAT
21
Top intake connections
1A007708
£11,58 Unit Price incl. VAT
22
screw
893132
£5,14 Unit Price incl. VAT
23
Front bottom intake connection
1A007396
£8,09 Unit Price incl. VAT
24
Rear bottom intake connection
1A007397
£11,58 Unit Price incl. VAT
25
O-ring 56,82X2,62
893240
£5,51 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
