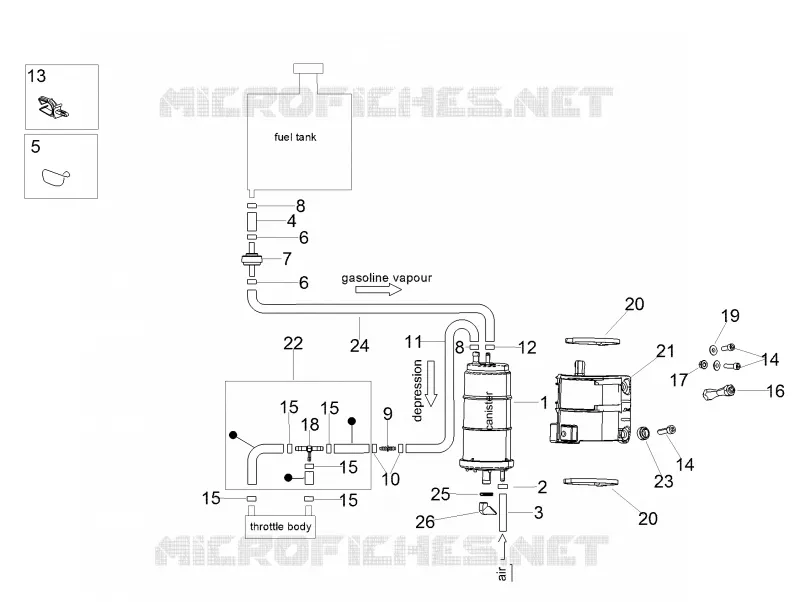

Fuel vapour recover system
3
1
2
23
22
21
17
16
15
15
15
15
15
14
13
12
11
10
9
8
8
7
6
6
4
5
20
20
19
18
19
24
25
26
1
Canister
2B002632
£193,34 Unit Price incl. VAT
2
Hose clamp
AP8102520
£2,08 Unit Price incl. VAT
3
Fuel pipe 8x13
890499
£14,63 Unit Price incl. VAT
4
pipe SAE 30 d.12,7x6,35
856063
£63,43 Unit Price incl. VAT
5
Cable-guide
AP8221150
£2,48 Unit Price incl. VAT
6
Hose clamp 12,5x8
AP8102239
£3,06 Unit Price incl. VAT
7
Pressure valve
AP8104614
£63,66 Unit Price incl. VAT
8
Hose clip, green D11x6,6x1
AP8120446
£3,25 Unit Price incl. VAT
9
Choke hold
AP8121267
£29,15 Unit Price incl. VAT
10
Hose clamp d.9,5
AP8102998
£2,93 Unit Price incl. VAT
11
Hose SAE 30 R12A-3/16"
2B003692
£22,18 Unit Price incl. VAT
12
White hose clip d.13x6
AP8102764
£3,25 Unit Price incl. VAT
13
Fairlead d18
AP8221311
£0,52 Unit Price incl. VAT
14
Hex socket screw M6x20
AP8150044
£1,27 Unit Price incl. VAT
15
Hose clamp
CM001901
£1,76 Unit Price incl. VAT
16
Spacer
894933
£24,37 Unit Price incl. VAT
17
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
18
3-way union
AP8104666
£16,02 Unit Price incl. VAT
19
Bush
AP8121032
£3,88 Unit Price incl. VAT
20
Black hose
AP8141017
£0,14 Unit Price incl. VAT
21
Support bracket
2B003441
£8,09 Unit Price incl. VAT
22
Shed pipe assembly
2B003684
Not Available
23
Bush
2B003714
£2,66 Unit Price incl. VAT
24
Hose SAE 30 R12A-3/16"
2B003691
£27,97 Unit Price incl. VAT
25
Ventilation plug
AP8127601
£13,27 Unit Price incl. VAT
26
Hose clamp
AP8102520
£2,08 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
