1
Engine displacement
1000
2
Model
RSV4
3
Year
2016
4
Trim
RSV4 1000 RR
5
Parts Catalog
Starter / Electric starter
6
Parts Diagram
Parts Catalog
Flywheel cover
by
Central electrical system

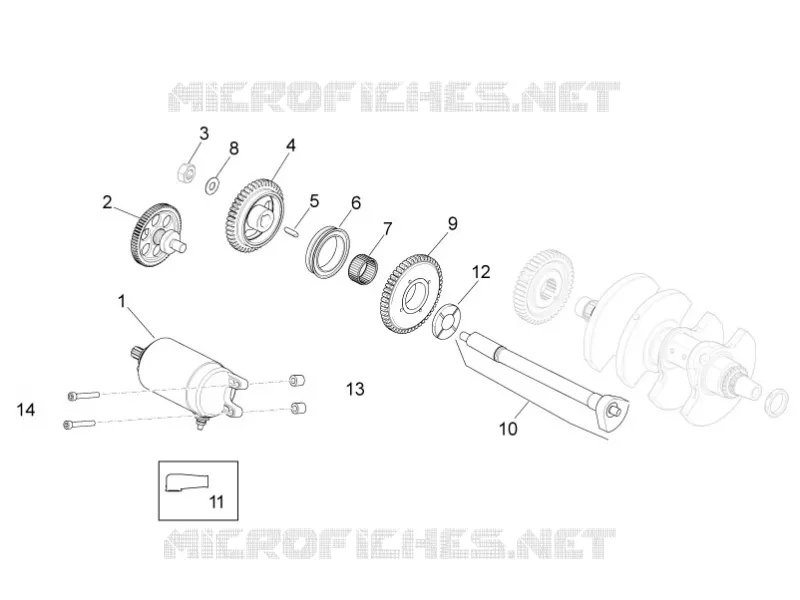

Starter / Electric starter
1
2
3
4
5
6
7
8
9
10
11
12
13
14
1
Starter motor
B044495
£186,88 Unit Price incl. VAT
2
Electric starter gear Z=12/64
85254R
£146,86 Unit Price incl. VAT
3
Flanged nut M10x1
897434
£13,64 Unit Price incl. VAT
4
Jackshaft control gear
2A000468
£254,58 Unit Price incl. VAT
5
Tab
857298
£2,40 Unit Price incl. VAT
6
Complete freewheel
825431
Not Available
7
Roller cage 30X35X17
857290
£16,40 Unit Price incl. VAT
8
Washer
235779
£0,64 Unit Price incl. VAT
9
"""Denso"" freewheel gear" z=49
857288
£254,74 Unit Price incl. VAT
10
Balance shaft
2A000469
£123,71 Unit Price incl. VAT
11
Cap
895316
£14,72 Unit Price incl. VAT
12
Fifth wheel
2A000547
£20,20 Unit Price incl. VAT
13
Spacer
2A000313
£2,35 Unit Price incl. VAT
14
Hex socket screw M6x40
AP8152003
£1,27 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
