1
Engine displacement
125
2
Model
CLASSIC
3
Year
1997
4
Trim
Classic
5
Parts Catalog
Rear body
6

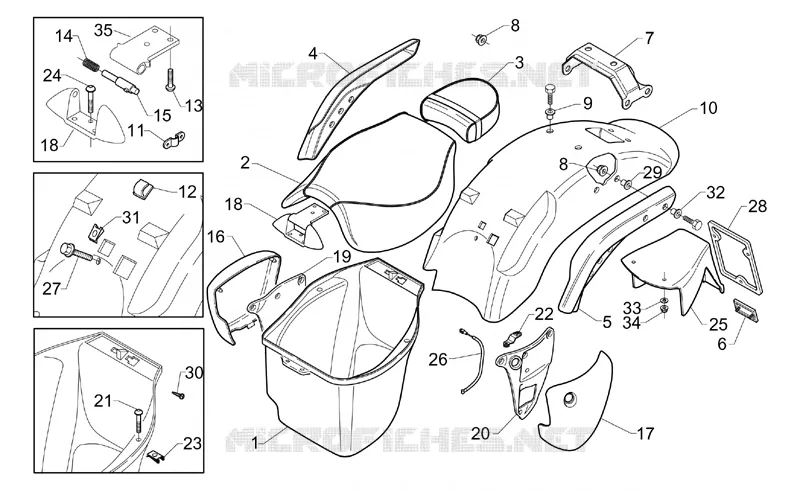

Parts Diagram
Parts Catalog
Front body
by
Controls
Rear body
1
2
3
4
5
6
7
8
8
9
10
11
12
13
14
15
16
17
18
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
Helmet compartment
AP8138344
Not Available
2
Saddle, grey
AP8129157
Not Available
2
Saddle, black
AP8129197
Not Available
2
Saddle, black
AP8129167
Not Available
3
Rear saddle with belt
AP8129160
Not Available
3
Rear saddle with belt
AP8129196
Not Available
3
Saddle with belt
AP8129168
Not Available
4
RH handle, chromed
AP8139463
Not Available
4
RH handle, alum.
AP8138525
Not Available
5
LH handle, chromed
AP8139464
Not Available
5
LH handle, alum.
AP8138526
Not Available
6
Rear reflector
AP8112916
£12,35 Unit Price incl. VAT
7
Saddle supp.plate
AP8134329
Not Available
8
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
9
T bush
AP8121716
£3,42 Unit Price incl. VAT
10
Rear mudguard, grey/red
AP8126673
Not Available
10
Rear mudguard, blue/must.
AP8126612
Not Available
10
Rear mudguard, cop/alu
AP8126524
Not Available
10
Rear mudguard, black/cyan
AP8126685
Not Available
10
Rear mudguard, grey/or.
AP8126518
Not Available
11
Saddle cable hook
AP8144017
Not Available
12
Black cable guide
AP8201727
£1,14 Unit Price incl. VAT
13
Hex socket screw M5x16
AP8152268
£1,88 Unit Price incl. VAT
14
Coil compress. spring *
AP8121710
£11,15 Unit Price incl. VAT
15
Saddle spin
AP8138417
Not Available
16
RH side panel, m.grey
AP8138523
Not Available
16
RH side panel, copper
AP8138537
Not Available
16
RH side panel, s.blue
AP8139069
Not Available
16
RH side panel, grey/red
AP8139550
Not Available
16
RH side panel, black/cyan
AP8139552
Not Available
17
LH side panel, m.grey
AP8138524
Not Available
17
LH side panel, black/cyan
AP8139553
Not Available
17
LH side panel, s.blue
AP8139070
Not Available
17
LH side panel, copper
AP8138538
Not Available
17
LH side panel, grey/red
AP8139551
Not Available
18
Sddle hinge support
AP8138416
Not Available
19
Electr. comp. plate
AP8134343
Not Available
20
LH Electr. comp. plate
AP8134344
Not Available
21
Screw w/ flange M5x12
AP8152302
Not Available
22
Saddle lock plate
AP8134347
Not Available
23
Clip
AP8102284
Not Available
24
Hex socket screw M5x25
AP8152270
£1,88 Unit Price incl. VAT
25
Number plate holder
AP8126487
Not Available
25
Number plate holder
AP8126672
Not Available
26
Saddle fastener
AP8114335
Not Available
27
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
28
Number plate holder
AP8126115
£62,03 Unit Price incl. VAT
29
T bush *
AP8121114
£4,49 Unit Price incl. VAT
30
Self-tap screw 2,9x12
AP8150421
£1,88 Unit Price incl. VAT
31
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
32
T bush 8,2x12x4
AP8121096
£1,96 Unit Price incl. VAT
33
Washer 15x5,5X1,2
AP8150382
£1,88 Unit Price incl. VAT
34
Self-locking nut M5
AP8152306
Not Available
35
Pillar hinge
AP8138329
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
