by

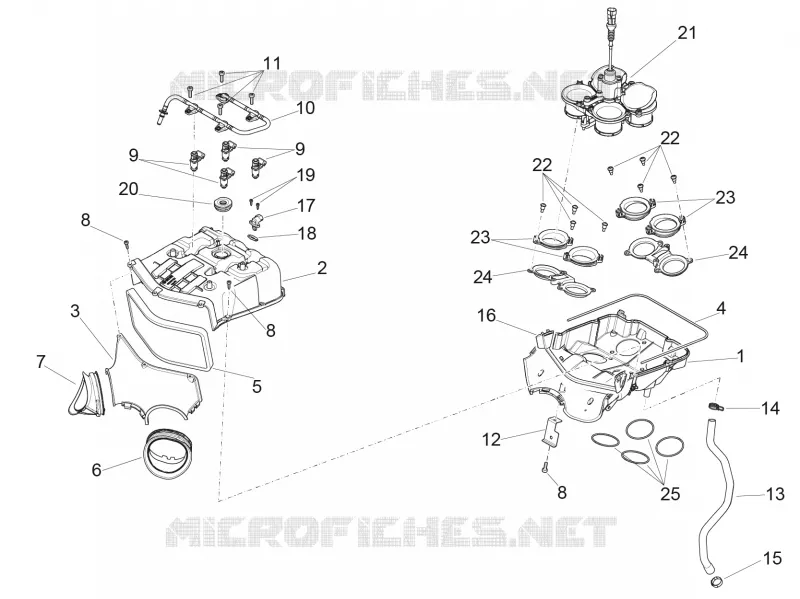

Air box
1
2
3
4
5
6
7
8
8
8
9
9
10
11
12
13
14
15
16
17
18
19
20
21
22
22
23
23
24
24
25
1
Filter housing base
2B001216
Not Available
2
Filter housing cover
2B001220
£39,38 Unit Price incl. VAT
3
Upper intake
2B001218
£10,06 Unit Price incl. VAT
4
Air filter housing seal
2B001217
£16,99 Unit Price incl. VAT
5
Air filter
2B001072
Not Available
6
Intake hose LH
2B001413
£11,63 Unit Price incl. VAT
7
Intake hose RH
2B001412
£11,63 Unit Price incl. VAT
8
Phillips screw, SWP M5x20
AP8152329
£1,80 Unit Price incl. VAT
9
Injector kit complete
2A000275
Not Available
10
Upper fuel rail
858807
£202,93 Unit Price incl. VAT
11
Phillips screw, SWP M5x20
AP8152329
£1,80 Unit Price incl. VAT
12
Fixing bracket
2B001481
£12,29 Unit Price incl. VAT
13
pipe blow-by
858808
£57,88 Unit Price incl. VAT
14
Hose clamp
CM002912
£0,24 Unit Price incl. VAT
15
Hose clamp
CM001927
£2,08 Unit Price incl. VAT
16
Air filter closing
2B001219
£4,28 Unit Price incl. VAT
17
Air temp. Sensor
GU30729330
£122,47 Unit Price incl. VAT
18
Gasket
GU30027931
£3,25 Unit Price incl. VAT
19
Self-tap screw 2,9x12
AP8150421
£1,88 Unit Price incl. VAT
20
Rubber spacer
893752
£8,57 Unit Price incl. VAT
21
Mobile system trumpets
2B001480
£1 437,72 Unit Price incl. VAT
22
screw
893132
£5,14 Unit Price incl. VAT
23
Complete lower intake duct
2B001507
£23,62 Unit Price incl. VAT
24
Maintenance
893915
£27,20 Unit Price incl. VAT
25
O-ring 56,82X2,62
893240
£5,51 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
