1
Engine displacement
125
2
Model
CLASSIC
3
Year
1997
4
Trim
Classic
5
Parts Catalog
Repairing tools I
6

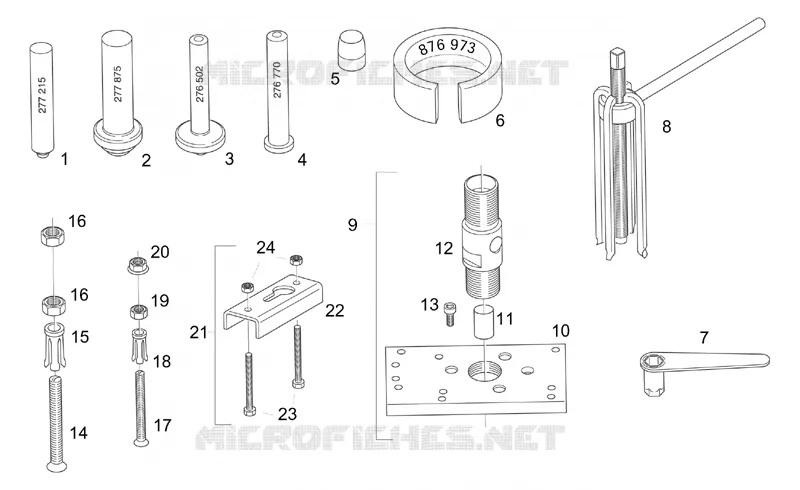

Parts Diagram
Parts Catalog
Ignition unit
by
Repairing tools II
Repairing tools I
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
1
Insertion jig
AP0277215
Not Available
2
Insertion jig assy.
AP0277875
Not Available
3
Insertion jig assy.
AP0276502
Not Available
4
Insertion jig assy.
AP0276770
Not Available
5
Spring guide bush
AP0277970
Not Available
6
Piston ring spanner 54 MM
AP0876973
Not Available
7
Clutch key 11 MM
AP0276040
Not Available
8
Bearing extractor kit
AP0277180
Not Available
9
Puller plate
AP0277455
Not Available
10
Puller plate
AP0277450
Not Available
11
Sheath
AP0277470
Not Available
12
Puller screw
AP0277460
Not Available
13
Hex socket screw M6x16
AP0241236
£10,10 Unit Price incl. VAT
14
Threaded pin
AP0276380
Not Available
15
Bush
AP0276370
Not Available
16
Nut
AP0242091
Not Available
17
Threaded pin
AP0276382
Not Available
18
Bush
AP0276372
Not Available
19
Nut M8
AP0242206
Not Available
20
Nut M8
AP0242700
Not Available
21
Exhaust valve puller cpl.
AP0277445
Not Available
22
Exhaust valve puller cpl.
AP0277440
Not Available
23
Hex screw M6x60
AP0240860
Not Available
24
Nut M6
AP0242211
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
