Cooling system for RSV4 1000 RR from 2017

Free shipping for all orders to United Kingdom over £150! See conditions.

Cooling system

1

Water cooler

B045753

Not Available

2

Fan, cpl.

2D000310

Not Available

3

Water cooler upper support

897775

£24,43 Unit Price incl. VAT

4

Screw w/ flange M6x20

AP8152279

£1,87 Unit Price incl. VAT

5

Cover

893954

£70,10 Unit Price incl. VAT

6

Hose clamp

CM269609

£3,60 Unit Price incl. VAT

7

Adhesive sponge

AP8117033

£8,10 Unit Price incl. VAT

8

Thermostat-cooler pipe

2B002204

£35,21 Unit Price incl. VAT

9

Hose clamp D10,1

AP8101595

£3,97 Unit Price incl. VAT

10

Thermostat valve set 75°C

856279

£84,72 Unit Price incl. VAT

11

Hose H2O

2B002207

£16,66 Unit Price incl. VAT

12

Thermostat-pump pipe

AP8144033

£23,12 Unit Price incl. VAT

13

Hose clamp D11,3

AP8102378

£4,01 Unit Price incl. VAT

14

Rubber spacer

AP8120030

£1,38 Unit Price incl. VAT

15

Cooler-pump pipe

858488

£135,50 Unit Price incl. VAT

16

Hose clamp

CM269603

£3,60 Unit Price incl. VAT

17

Thermostat-engine pipe

2B002208

£28,10 Unit Price incl. VAT

18

Screw w/ flange M5x12

AP8152272

£1,88 Unit Price incl. VAT

19

Hose clamp

893224

£10,54 Unit Price incl. VAT

20

Screw

893514

£2,48 Unit Price incl. VAT

21

Washer d4,5

893823

£7,85 Unit Price incl. VAT

22

Spacer

893513

£5,14 Unit Price incl. VAT

23

Washer 4,3x12x1

AP8150011

£1,88 Unit Price incl. VAT

24

Nut M4

AP8150204

£1,88 Unit Price incl. VAT

25

Temperature gauge

640485

Not Available

26

Engine-manifold pipe

2B002203

£37,43 Unit Price incl. VAT

27

Hose clip 26x8

AP9100456

£3,49 Unit Price incl. VAT

28

Manifold

856543

£26,28 Unit Price incl. VAT

29

Fuel pipe 5,5x10

AP8120952

Not Available

30

Expansion tank plug

AP8104836

Not Available

31

Expansion tank

858908

£89,02 Unit Price incl. VAT

32

T bush *

AP8221145

£9,78 Unit Price incl. VAT

33

Washer 6,6x18x1,6*

AP8150015

£1,88 Unit Price incl. VAT

34

T bush

AP8121728

£1,88 Unit Price incl. VAT

35

Bush

AP8121991

£3,60 Unit Price incl. VAT

36

Cable-guide

AP8221150

£2,48 Unit Price incl. VAT

37

Bush

895450

£7,85 Unit Price incl. VAT

38

Hose

AP8144720

£13,62 Unit Price incl. VAT

39

Stop ring

AP8120573

£0,73 Unit Price incl. VAT

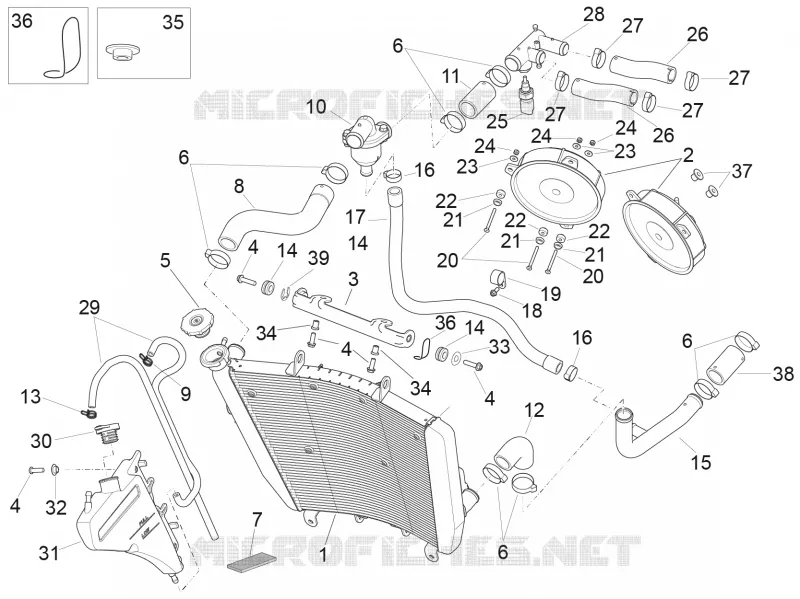

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.

The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
