1
Engine displacement
125
2
Model
CLASSIC
3
Year
1998
4
Trim
Classic
5
Parts Catalog
Grip shift
6

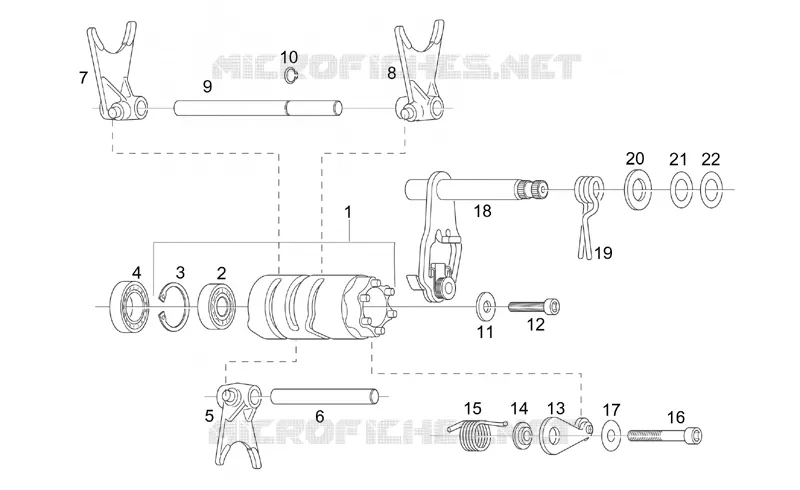

Parts Diagram
Parts Catalog
Transmission 6 speed
by
Clutch
Grip shift
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
Shift cam
AP0258307
Not Available
2
Bearing 6001
AP0232402
£61,51 Unit Price incl. VAT
3
Circlip
AP0245790
Not Available
4
Ball bearing 61804
AP0632060
Not Available
5
Fork 5-6 V.ta'
AP0258135
Not Available
6
Pin M6x70
AP0229390
£13,44 Unit Price incl. VAT
7
Fork 2-3 speed
AP0258123
Not Available
8
Fork 1-4 v.ta'
AP0258113
Not Available
9
Fork shaft
AP0258200
£69,95 Unit Price incl. VAT
10
Circlip 8x0,8
AP0245570
Not Available
11
Washer 6,2x18x2
AP0827305
£12,08 Unit Price incl. VAT
12
Hex socket screw M6x30
AP0840880
£5,96 Unit Price incl. VAT
13
Index assy. lever
AP0248325
Not Available
14
Bush
AP0227710
Not Available
15
Index spring
AP0239241
Not Available
16
Hex socket screw M6x45
AP0241821
Not Available
17
Washer 6,2x18x0,5
AP0827307
£12,08 Unit Price incl. VAT
18
Gearshift shaft+pawl assy
AP0220295
Not Available
19
Spring
AP0239252
Not Available
20
Washer 13
AP0427690
£3,77 Unit Price incl. VAT
21
Thrust washer 12,5/21,5
AP0827261
Not Available
22
Thrust washer 12,5/21,5/0,5
AP0227450
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
