1
Engine displacement
1000
2
Model
RSV4
3
Year
2016
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog

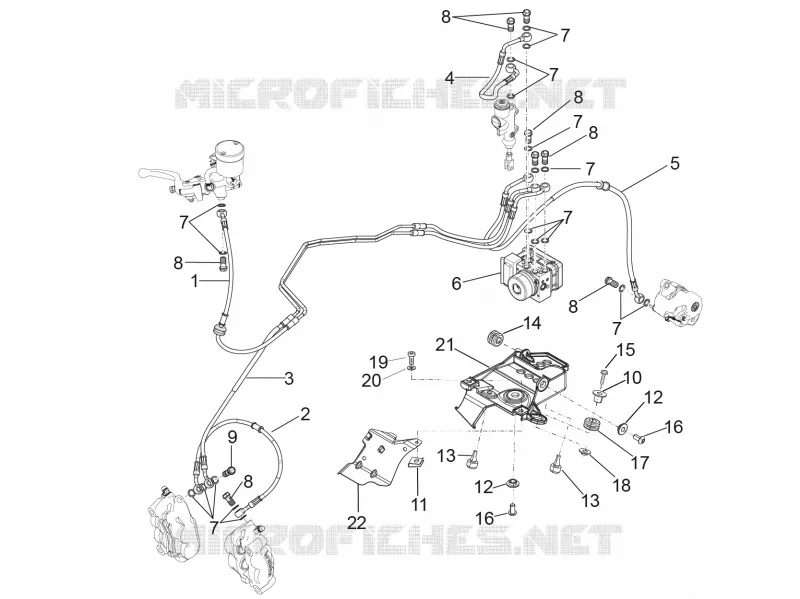

ABS Brake system
6
Parts Diagram
Parts Catalog
Front cylinder timing system
by
Fuel tank
ABS Brake system
21
22
20
19
18
17
16
16
15
14
13
13
12
11
12
10
9
8
8
8
8
8
8
7
7
7
7
7
7
7
7
6
5
4
3
2
1
1
Front brake pipe pump-Hecu ABS
B044589
£114,16 Unit Price incl. VAT
2
Front brake pipe clamp-clamp
B044591
£44,71 Unit Price incl. VAT
3
Front brake pipe Hecu ABS-clamp
B044590
£122,39 Unit Price incl. VAT
4
Rear brake pipe pump-Hecu ABS
B044592
£107,94 Unit Price incl. VAT
5
Rear brake pipe Hecu ABS-clamp
B044593
Not Available
6
ECU ABS Bosch 9MP
B044588
Not Available
7
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
8
Oil pipe screw
852702
Not Available
9
Dual brake pipe screw
B044594
£33,94 Unit Price incl. VAT
10
T bush
AP8221023
£1,64 Unit Price incl. VAT
11
Clip M4
AP8102381
£4,02 Unit Price incl. VAT
12
Bush d.10-h.3,5
AP9100053
£1,76 Unit Price incl. VAT
13
Rubber spacer
AP8706087
£2,95 Unit Price incl. VAT
14
Rubber spacer *
AP8120223
£2,74 Unit Price incl. VAT
15
Screw w/ flange M5x20
AP8152274
£1,80 Unit Price incl. VAT
16
Hex socket screw M6x12
AP8152186
£0,52 Unit Price incl. VAT
17
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
18
Bush
AP8121032
£3,88 Unit Price incl. VAT
19
Hex socket screw M4x10
AP8152043
£1,88 Unit Price incl. VAT
20
Washer 4,3x12x1
AP8150011
£1,88 Unit Price incl. VAT
21
ABS control unit support
B044551
£13,72 Unit Price incl. VAT
22
Protection
B045095
£25,54 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
