1
Engine displacement
1000
2
Model
RSV4
3
Year
2016
4
Trim
RSV4 1000 Racing Factory L.E
5
Parts Catalog

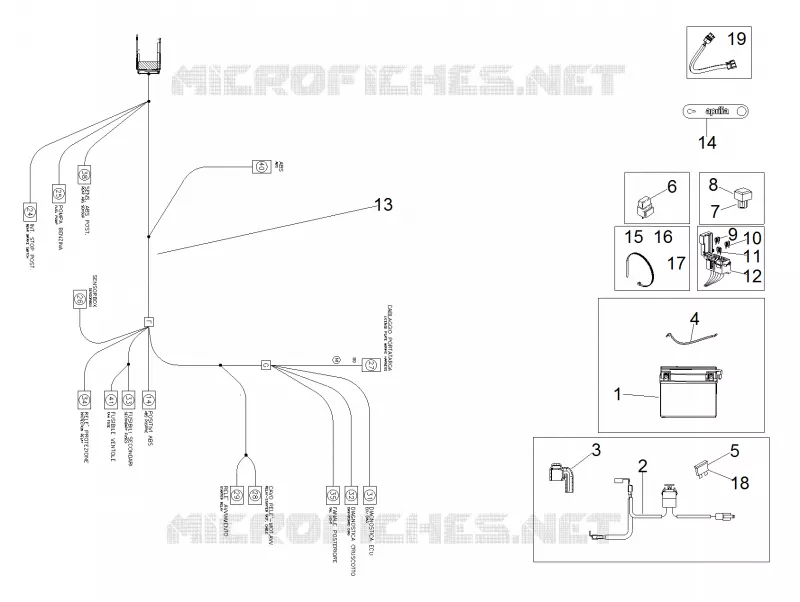

Rear electrical system
6
Parts Diagram
Parts Catalog
Oil radiator
by
Rear brake caliper
Rear electrical system
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
Battery 12V-12Ah
639792
£236,00 Unit Price incl. VAT
2
Relay battery wiring
B044640
Not Available
3
Terminal cap
895701
£13,50 Unit Price incl. VAT
4
Earth cable
2D000158
£48,94 Unit Price incl. VAT
5
Fuse 30A
CM225730
£4,74 Unit Price incl. VAT
6
Starter relay
582690
£37,98 Unit Price incl. VAT
7
Injection relay 12V-40W
895481
£19,52 Unit Price incl. VAT
8
Relay rubber
896715
£7,33 Unit Price incl. VAT
9
Fuse 5A
CM225605
£4,74 Unit Price incl. VAT
10
Fuse 7,5A
CM225607
£4,74 Unit Price incl. VAT
11
Fuse 15A
CM225615
£5,77 Unit Price incl. VAT
12
Rubber fuse box
858212
£13,80 Unit Price incl. VAT
13
Main wiring harness
2D000061
£835,63 Unit Price incl. VAT
14
Hose clamp
860744
£5,14 Unit Price incl. VAT
15
Black hose 178x4
AP8120416
£1,00 Unit Price incl. VAT
16
Hose clamp 155x2
AP8102386
£0,18 Unit Price incl. VAT
17
Hose clamp
AP8120657
£1,88 Unit Price incl. VAT
18
Fuse 15A
CM225715
£6,97 Unit Price incl. VAT
19
Wiring BLUEDASH
2D000010
£57,19 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
