1
Engine displacement
1000
2
Model
RSV4
3
Year
2013
4
Trim
RSV4 1000 APRC R ABS
5
Parts Catalog
Front body I
6

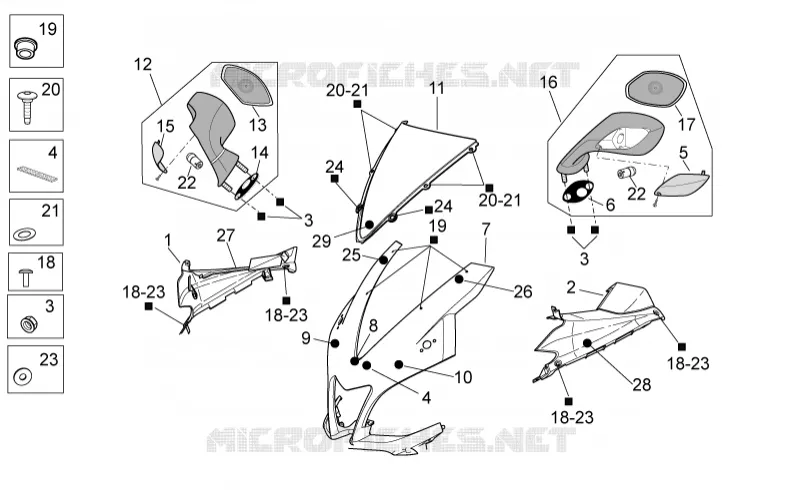

Parts Diagram
Parts Catalog
Rear shock absorber
by
Plate set and decal
Front body I
1
2
3
3
3
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
18
18
18
19
19
20
20
20
21
21
21
22
22
23
23
23
23
23
24
24
25
26
27
28
29
1
Upper RH fairing, black
85881300XN6
£132,56 Unit Price incl. VAT
2
Upper LH fairing, black
89732600XN6
Not Available
3
Flanged nut
AP8150506
£1,27 Unit Price incl. VAT
4
Adhesive sponge
AP8117033
£8,10 Unit Price incl. VAT
5
LH orange lens
AP8104759
£31,10 Unit Price incl. VAT
5
LH transparent lens
AP8127700
£28,46 Unit Price incl. VAT
6
LH gasket
893936
£19,15 Unit Price incl. VAT
7
SHIELD
2H00019300XRC
Not Available
7
Front fairing painted yellow
B04438700XG6
Not Available
7
Front fairing, white
89879200BM
Not Available
7
Front fairing, black
B04581000NI
Not Available
8
STICKER
2H000241
£9,89 Unit Price incl. VAT
8
Front fairing decal "Italia"
B045794
£11,29 Unit Price incl. VAT
8
Front fairing decal
898533
£9,40 Unit Price incl. VAT
9
RH Front fairing decal
893763
£5,86 Unit Price incl. VAT
9
RH Front fairing decal "APRC RSV4R"
2H000206
£10,08 Unit Price incl. VAT
9
RH Front fairing decal
B044379
£8,66 Unit Price incl. VAT
10
LH Front fairing decal
B044380
£8,66 Unit Price incl. VAT
10
LH Front fairing decal "APRC RSV4R"
2H000207
£10,08 Unit Price incl. VAT
10
LH Front fairing decal
893764
£5,86 Unit Price incl. VAT
11
Windshield
895869
£109,81 Unit Price incl. VAT
12
RH rearview mirror
899202
Not Available
12
RH rearview mirror
894519
Not Available
13
RH rearview mirror
AP8104755
£46,57 Unit Price incl. VAT
13
RH rearview mirror
899062
£58,67 Unit Price incl. VAT
14
RH gasket
893935
£19,15 Unit Price incl. VAT
15
RH transparent lens
AP8127699
£28,46 Unit Price incl. VAT
15
RH orange lens
AP8104760
£31,10 Unit Price incl. VAT
16
LH rearview mirror
894520
Not Available
16
LH rearview mirror
899203
Not Available
17
LH rearview mirror
899063
£58,67 Unit Price incl. VAT
17
LH rearview mirror
AP8104754
£31,44 Unit Price incl. VAT
18
screw
893838
Not Available
19
Rubber w/ insert M4
AP8144564
£2,52 Unit Price incl. VAT
20
screw M4x12
893839
Not Available
21
Nylon washer
AP8144565
£1,27 Unit Price incl. VAT
22
Lamp RY10W 12V
AP8127489
£6,18 Unit Price incl. VAT
22
Lamp 12V-10W
181746
£2,92 Unit Price incl. VAT
23
Front dust cover ring
AP8120622
£1,36 Unit Price incl. VAT
24
Rubber spacer
AP8220186
£2,48 Unit Price incl. VAT
25
RH Front fairing decal "APRC RSV4R"
B045773
£7,44 Unit Price incl. VAT
25
Sticker RH "APRC RSV4R"
898790
Not Available
26
LH Front fairing decal "APRC RSV4R"
B045774
Not Available
26
Sticker LH "APRC RSV4R"
898791
£7,44 Unit Price incl. VAT
27
RH Top fairing decal
898534
£14,21 Unit Price incl. VAT
28
LH Top fairing decal
898535
£14,21 Unit Price incl. VAT
29
Windshield decal
895335
£11,29 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
