1
Engine displacement
1000
2
Model
RSV4
3
Year
2011
4
Trim
RSV4 1000 APRC R
5
Parts Catalog
Handlebar - Controls
6
Parts Diagram
Parts Catalog
Engine
by
Lubrication

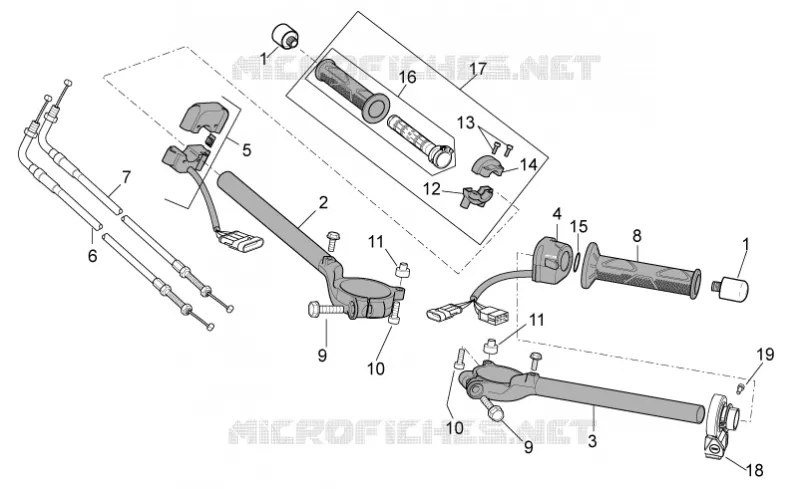

Handlebar - Controls
1
1
2
3
4
5
6
7
8
9
9
10
10
11
11
12
13
14
15
16
17
18
19
1
H.bars anti.v weight
893757
£53,62 Unit Price incl. VAT
2
Right half handlebar d.51,1
AP8118649
Not Available
3
Left half handlebar
896759
Not Available
4
LH lights selector
858721
Not Available
5
Engine stop-start device
851998
Not Available
6
Gas trasmission delivery
896859
Not Available
7
Gas trasmission return
896860
Not Available
8
LH hand grip
856027
£10,19 Unit Price incl. VAT
9
Screw M8x35
AP8150543
£13,28 Unit Price incl. VAT
10
Hex socket screw M6x16
AP8150137
£1,27 Unit Price incl. VAT
11
Spacer bush *
AP8221043
Not Available
12
Front gas lever U-bolt
AP8118502
£30,05 Unit Price incl. VAT
13
Hex socket screw M5x16
AP8150050
£1,88 Unit Price incl. VAT
14
Rear gas lever U-bolt
AP8118503
Not Available
15
O-ring 3075
AP8120190
£4,14 Unit Price incl. VAT
16
Throttle with hand grip
GU01603480
£30,84 Unit Price incl. VAT
17
Throttle cpl.
GU05603331
£190,72 Unit Price incl. VAT
18
Selector control bracket
852398
£141,66 Unit Price incl. VAT
19
Hex socket screw M4x10
AP8152043
£1,88 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
