1
Engine displacement
1000
2
Model
RSV4
3
Year
2011
4
Trim
RSV4 1000 APRC Factory STD - SE
5
Parts Catalog

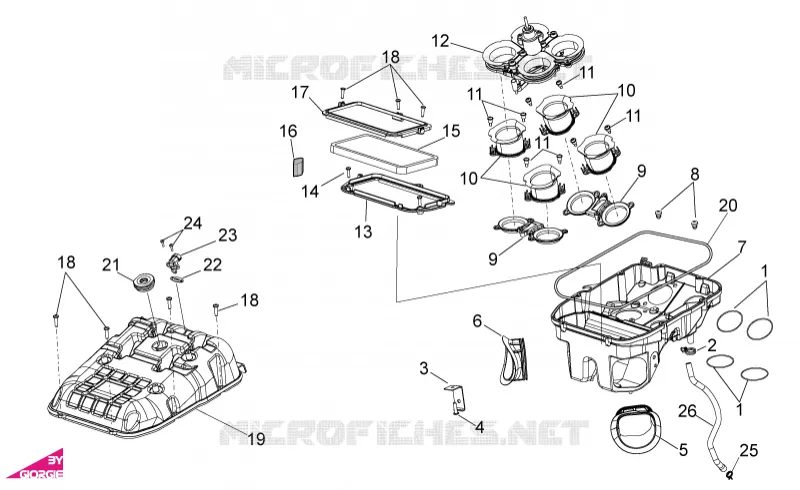

Air box
6
Parts Diagram
Parts Catalog
Rear body I
by
Rear wheel
Air box
24
23
21
22
20
18
19
18
17
18
16
15
14
13
12
11
11
11
11
10
10
9
9
8
7
6
5
4
3
2
1
1
25
26
1
O-ring 56,82X2,62
893240
£5,51 Unit Price incl. VAT
2
Hose clamp
CM002912
£0,24 Unit Price incl. VAT
3
Bracket
890938
£10,18 Unit Price incl. VAT
4
Phillips screw, SWP M5x20
AP8152329
£1,80 Unit Price incl. VAT
5
LH Hose
858880
£15,28 Unit Price incl. VAT
6
RH Hose
858932
£15,28 Unit Price incl. VAT
7
Filter housing base
858876
£88,02 Unit Price incl. VAT
8
Rubber spacer
AP8144087
£8,65 Unit Price incl. VAT
9
Maintenance
893915
£27,20 Unit Price incl. VAT
10
Intake opening
893916
Not Available
11
screw
893132
£5,14 Unit Price incl. VAT
12
Mobile system trumpets
893887
Not Available
13
Maintenance
858877
£12,82 Unit Price incl. VAT
14
Phillips screw, SWP M5x20
AP8152329
£1,80 Unit Price incl. VAT
15
Air filter
858930
£89,02 Unit Price incl. VAT
16
Filter blow-by
894015
£1,54 Unit Price incl. VAT
17
Frame
858878
£12,13 Unit Price incl. VAT
18
Phillips screw, SWP M5x20
AP8152329
£1,80 Unit Price incl. VAT
19
Filter housing cover
858875
Not Available
20
Gasket
858881
£19,82 Unit Price incl. VAT
21
Rubber spacer
893752
£8,57 Unit Price incl. VAT
22
Gasket
GU30027931
£3,25 Unit Price incl. VAT
23
Air temp. Sensor
GU30729330
£122,47 Unit Price incl. VAT
24
Self-tap screw 2,9x12
AP8150421
£1,88 Unit Price incl. VAT
25
Hose clamp
CM001927
£2,08 Unit Price incl. VAT
26
pipe blow-by
858808
£57,88 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
