1
Engine displacement
1000
2
Model
RSV4
3
Year
2011
4
Trim
RSV4 1000 APRC Factory STD - SE
5
Parts Catalog
Drive shaft
6
Parts Diagram
Parts Catalog
Central stand
by
Rear body II

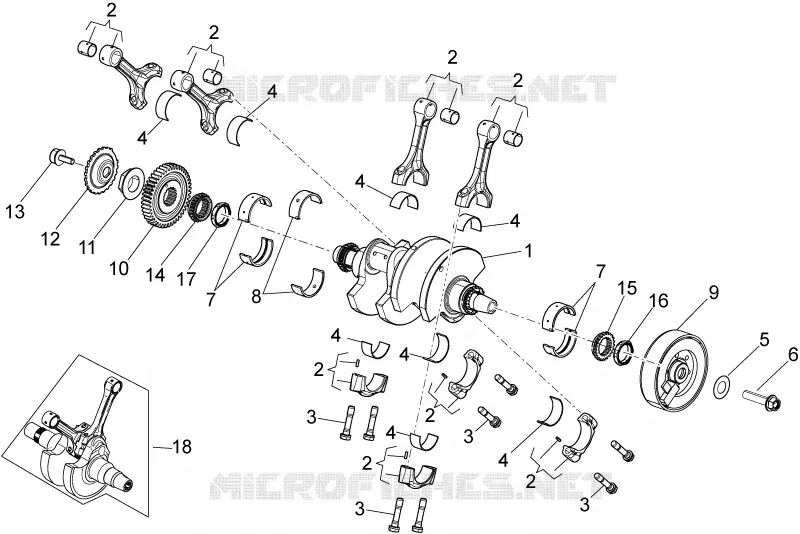

Drive shaft
1
2
2
2
2
2
2
2
2
3
3
3
3
4
4
4
4
4
4
4
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
1
Crankshaft cpl. Cat. FF
B045412FF
£791,98 Unit Price incl. VAT
1
Drive shaft
8572555
£1 952,60 Unit Price incl. VAT
1
Crankshaft cpl. Cat. CC
B045412CC
£1 929,38 Unit Price incl. VAT
1
Crankshaft cpl.
B0430675
Not Available
1
Crankshaft cpl. Cat. DD
B045412DD
£1 929,38 Unit Price incl. VAT
1
Crankshaft cpl. Cat. AA
B045412AA
£1 929,38 Unit Price incl. VAT
2
CONNECTING ROD ASSY
2A000166FF
£468,92 Unit Price incl. VAT
2
Connecting rod cpl. Cat. BB
B0454754BB
Not Available
2
Connecting rod CC 356-359
8976535003
Not Available
2
Connecting rod DD gr.353-356
8976535004
Not Available
2
Connecting rod cpl. Cat. EE
B0454754EE
Not Available
2
Connecting rod cpl. Cat. CC
B0454754CC
Not Available
2
Connecting rod BB 359-362
8976535002
Not Available
2
Connecting rod EE 350-353
8976535005
Not Available
2
Connecting rod cpl. Cat. DD
B0454754DD
Not Available
3
Connecting rod screw
857115
Not Available
4
Bushing half-shell, red
8571170001
£67,24 Unit Price incl. VAT
4
Yellow bushing half-shell (new) H 15.8mm
B044724GI
Not Available
4
Blue bushing half-shell (new) H 15.8mm
B044724BL
Not Available
4
Green bushing half-shell (new) H 15.8mm
B044724VE
Not Available
4
Bushing half-shell, blue
8571170002
£67,24 Unit Price incl. VAT
4
Bushing half-shell, yellow
8571170003
£67,24 Unit Price incl. VAT
5
Washer 12x26.5x3
897478
£9,68 Unit Price incl. VAT
6
Screw w/ flange M12X1,25X50
857206
£25,60 Unit Price incl. VAT
7
Bushing half-shell, yellow
8571320003
Not Available
7
Bushing half-shell, red
8571320001
Not Available
7
Bushing half-shell, blue
8571320002
Not Available
8
Bushing half-shell, blue
8571300002
Not Available
8
Bushing half-shell, red
8571300001
Not Available
8
Bushing half-shell, yellow
8571300003
Not Available
9
Cdi magneto assy
897479
Not Available
9
Cdi magneto assy
857201
£776,82 Unit Price incl. VAT
10
Primary drive gear
899484
£201,60 Unit Price incl. VAT
11
Ring nut
857121
Not Available
12
Phonic wheel
857118
£54,54 Unit Price incl. VAT
13
Special screw M8x24
857077
£42,07 Unit Price incl. VAT
14
Timing gear
857544
£115,44 Unit Price incl. VAT
15
Timing gear
857545
£112,33 Unit Price incl. VAT
16
Ring nut
898092
£31,76 Unit Price incl. VAT
17
Sprocket spacer
897474
£15,91 Unit Price incl. VAT
18
Crankshaft cpl.
B0454575
£3 226,98 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
