1
Engine displacement
1000
2
Model
RSV4
3
Year
2012
4
Trim
RSV4 1000 APRC Factory STD - SE
5
Parts Catalog

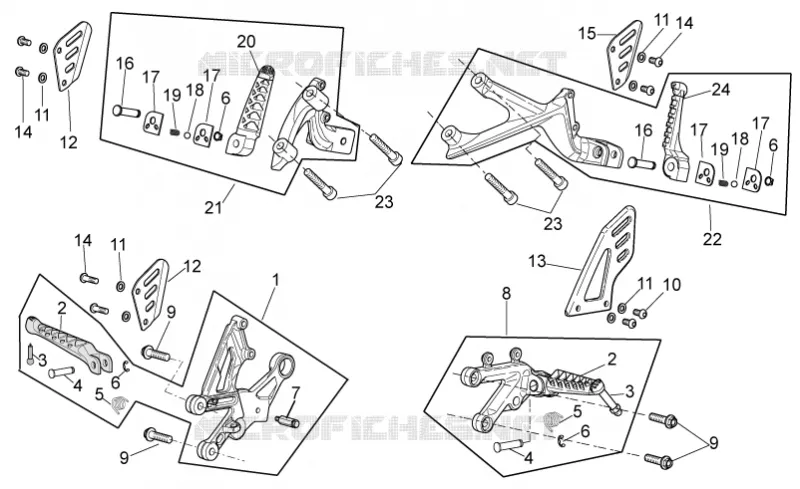

Foot rests
6
Parts Diagram
Parts Catalog
Rear body II
by
Clutch II
Foot rests
1
2
2
3
3
4
4
5
5
6
6
6
6
7
8
9
9
10
11
11
11
11
12
12
13
14
14
14
15
16
16
17
17
17
17
18
18
19
19
20
21
22
23
23
24
1
RH front footrest bracket
858786
£80,02 Unit Price incl. VAT
2
Front footrest, pair
AP8146862
Not Available
3
Footrest pin
AP8134955
£22,21 Unit Price incl. VAT
4
Footrest pin
AP8121566
£11,32 Unit Price incl. VAT
5
Footrest return spring
AP8121224
£4,21 Unit Price incl. VAT
6
Stop ring
AP8152409
£1,38 Unit Price incl. VAT
7
Springs fixing pin
GU05677730
£21,06 Unit Price incl. VAT
8
LH front footrest bracket
AP8146502
Not Available
9
Screw
AP8150540
£10,54 Unit Price incl. VAT
10
Hex socket screw M6x20
AP8224470
£1,27 Unit Price incl. VAT
11
Spring washer 6,4x11x0,5*
AP8150429
Not Available
12
RH protection
858787
£65,86 Unit Price incl. VAT
13
LH protection
858788
£65,86 Unit Price incl. VAT
14
Hex socket screw M6x12
AP8150537
£1,27 Unit Price incl. VAT
15
LH rear footrest guard
894201
£44,93 Unit Price incl. VAT
16
Footrest pin
AP8134829
£6,28 Unit Price incl. VAT
17
Footrest plate
AP8134451
£5,77 Unit Price incl. VAT
18
Ball D6,35
AP8101861
£0,36 Unit Price incl. VAT
19
Coil compress. spring
AP8121133
£3,22 Unit Price incl. VAT
20
Rear footrest, RH
AP8146616
£134,70 Unit Price incl. VAT
21
Rear footrest, RH cpl
893996
£359,69 Unit Price incl. VAT
22
Rear footrest, LH
893997
£359,69 Unit Price incl. VAT
23
Hex socket screw M8x45
AP8150164
£1,88 Unit Price incl. VAT
24
Rear footrest, LH
AP8146617
£134,70 Unit Price incl. VAT

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
