Parts Catalog
Rear wheel
6
Parts Diagram
Parts Catalog
Gear box
by
Rear cylinder timing system

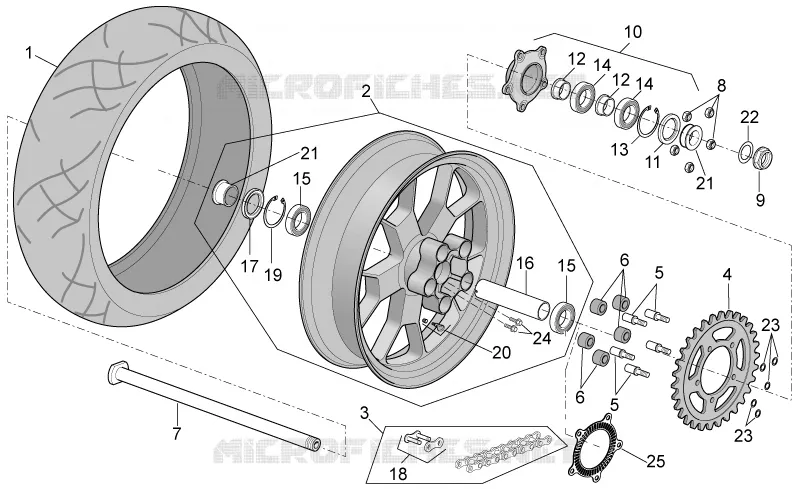

Rear wheel
1
2
3
4
5
5
6
6
7
8
9
10
11
12
12
13
14
14
15
15
16
17
18
19
20
21
21
22
23
23
24
25
1
Rear tyre 200/55-17" M/C
897367
Not Available
2
Rear wheel
894847
Not Available
2
Rear wheel, gold
896171
Not Available
3
Chain cpl conn.link
896358
£161,87 Unit Price incl. VAT
4
Chain ring Z=42
CM224903
£134,05 Unit Price incl. VAT
5
Pin
B045033
£13,34 Unit Price incl. VAT
6
Flexible coupling rubber
AP8125731
Not Available
7
Rear wheel spindle
858731
Not Available
8
Low self-locking nut
AP8150436
£1,94 Unit Price incl. VAT
9
Wheel spindle nut M25x1,5
AP8152324
£13,22 Unit Price incl. VAT
10
Crown holder cpl.
AP8125730
Not Available
11
Gasket ring 38x55x7
AP8121213
£13,72 Unit Price incl. VAT
12
Spring drive spacer
AP8125732
£86,94 Unit Price incl. VAT
13
Inside circlip d55
AP8121212
£2,80 Unit Price incl. VAT
14
Bearing 30x55x13
AP8110081
£25,36 Unit Price incl. VAT
15
Bearing 6205-2rs1 25x52x15
AP8110093
£69,65 Unit Price incl. VAT
16
Internal spacer
AP8176101
Not Available
17
Gasket ring 38x52x7
AP8125838
£2,71 Unit Price incl. VAT
18
Connecting link
859754
£15,17 Unit Price incl. VAT
19
Snap ring d52
AP8125839
£5,14 Unit Price incl. VAT
20
Tubeless tyre valve 90°
AP8104728
£18,78 Unit Price incl. VAT
21
Rear wheel spacer
AP8121592
£53,63 Unit Price incl. VAT
22
Washer 25,2x36x1
AP8152323
£8,57 Unit Price incl. VAT
23
Washer 10,5x21x2*
AP8150020
£1,88 Unit Price incl. VAT
24
Screw w/ flange M6x16
874555
£2,08 Unit Price incl. VAT
25
Phonic wheel ABS
890960
£37,02 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
