1
Engine displacement
1000
2
Model
RSV4
3
Year
2015
4
Trim
RSV4 1000 APRC Factory ABS
5
Parts Catalog

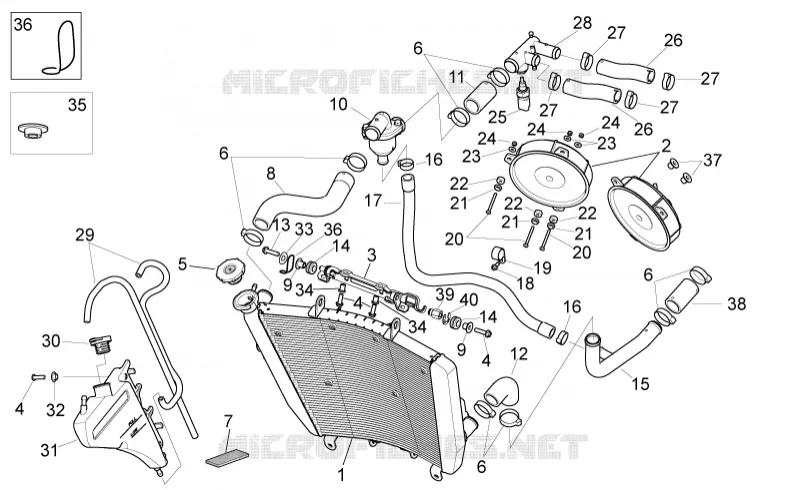

Cooling system
6
Parts Diagram
Parts Catalog
Undersaddle
by
Rear brake caliper
Cooling system
1
2
3
4
4
4
5
6
6
6
6
7
8
9
9
10
11
12
13
14
14
15
16
16
17
18
19
20
20
21
21
21
22
22
22
23
23
24
24
24
25
26
26
27
27
27
27
28
29
30
31
32
33
34
34
35
36
36
37
38
39
40
1
Water cooler
B045753
Not Available
2
Fan, cpl.
622055
Not Available
3
Water cooler upper support
897775
£24,43 Unit Price incl. VAT
4
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
5
Cover
893954
£70,10 Unit Price incl. VAT
6
Hose clamp
890931
£5,14 Unit Price incl. VAT
7
Adhesive sponge
AP8117033
£8,10 Unit Price incl. VAT
8
Thermostat-cooler pipe
858476
Not Available
9
T bush
AP8221023
£1,64 Unit Price incl. VAT
10
Thermostat valve set 75°C
856279
£84,72 Unit Price incl. VAT
11
Hose
858477
£15,40 Unit Price incl. VAT
12
Thermostat-pump pipe
AP8144033
£23,12 Unit Price incl. VAT
13
Self-tapping screw
AP8150444
£1,27 Unit Price incl. VAT
14
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
15
Cooler-pump pipe
858488
£135,50 Unit Price incl. VAT
16
Hose clip
AP8102273
£2,47 Unit Price incl. VAT
17
Thermostat-engine pipe
858478
Not Available
18
Screw w/ flange M5x12
AP8152272
£1,88 Unit Price incl. VAT
19
Hose clamp
893224
£10,54 Unit Price incl. VAT
20
Screw
893514
£2,48 Unit Price incl. VAT
21
Washer d4,5
893823
£7,85 Unit Price incl. VAT
22
Spacer
893513
£5,14 Unit Price incl. VAT
23
Washer 4,3x12x1
AP8150011
£1,88 Unit Price incl. VAT
24
Nut M4
AP8150204
£1,88 Unit Price incl. VAT
25
Temperature gauge
640485
Not Available
26
Engine-manifold pipe
858475
Not Available
27
Hose clamp
CM269609
£3,60 Unit Price incl. VAT
28
Manifold
856543
£26,28 Unit Price incl. VAT
29
Fuel pipe 5,5x10
AP8120952
Not Available
30
Expansion tank plug
AP8104836
Not Available
31
Expansion tank
858908
£89,02 Unit Price incl. VAT
32
T bush *
AP8221145
£9,78 Unit Price incl. VAT
33
Washer 4,3X9X0,8
AP8150158
£1,27 Unit Price incl. VAT
34
T bush
AP8121728
£1,88 Unit Price incl. VAT
35
Bush
AP8121991
£3,60 Unit Price incl. VAT
36
Cable-guide
AP8221150
£2,48 Unit Price incl. VAT
37
Bush
895450
£7,85 Unit Price incl. VAT
38
Hose
AP8144720
£13,62 Unit Price incl. VAT
39
Threaded insert M6x16
898047
£7,33 Unit Price incl. VAT
40
Stop ring
AP8120573
£0,73 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
