1
Engine displacement
1000
2
Model
RSV4
3
Year
2013
4
Trim
RSV4 1000 APRC Factory ABS
5
Parts Catalog
Fuel tank
6
Parts Diagram
Parts Catalog
Exhaust pipe II
by
Plate set and decal
Fuel tank
1
2
3
4
5
6
7
8
9
10
11
12
12
13
13
14
14
15
16
17
18
18
18
19
20
21
22
23
23
24
25
26
27
28
29
30
31
31
31
32
32
32
33
34
35
36
37
38
40
41
1
Complete black painted fuel tank
B04622100XN2
£706,07 Unit Price incl. VAT
1
Complete matt black painted fuel tank
2H000217000NI
£706,07 Unit Price incl. VAT
1
Complete black painted fuel tank
B04512700XN2
Not Available
1
Complete matt black painted fuel tank
2H000216000NI
Not Available
2
LH Fuel tank decal Factory
2H000227
£16,49 Unit Price incl. VAT
2
LH Fuel tank decal Aprilia
B045374
£4,78 Unit Price incl. VAT
3
Fuel tank cover, black
B04454700NI
£161,24 Unit Price incl. VAT
3
Fuel tank cover, red
B04526200XR4
£161,24 Unit Price incl. VAT
4
Front RH decal triangle
898586
£4,60 Unit Price incl. VAT
5
Front LH decal triangle
898587
£4,60 Unit Price incl. VAT
6
Front support
858885
Not Available
7
Silent-block
AP8101372
£1,88 Unit Price incl. VAT
8
Bush Fixing
B044548
£15,16 Unit Price incl. VAT
9
Special washer
AP8150536
£24,73 Unit Price incl. VAT
10
Bracket
893107
£10,26 Unit Price incl. VAT
11
Fixing pin
AP8161127
£13,56 Unit Price incl. VAT
12
screw
576836
£3,60 Unit Price incl. VAT
13
Spacer
893273
£10,54 Unit Price incl. VAT
14
Rubber spacer *
AP8120663
£7,32 Unit Price incl. VAT
15
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
16
LH support
858886
£13,60 Unit Price incl. VAT
17
Fuel pump cpl.
B043925
Not Available
17
Fuel pump cpl.
858726
Not Available
18
Screw w/ flange M6x16
AP8152246
£4,03 Unit Price incl. VAT
19
Hex socket screw M6x45
AP8150403
£1,94 Unit Price incl. VAT
20
Screw w/ flange M5x9
AP8152339
£1,94 Unit Price incl. VAT
21
Hex socket screw M5x10
AP8150538
£1,94 Unit Price incl. VAT
22
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
23
Hex socket screw m4x6 inox
AP8150505
£1,21 Unit Price incl. VAT
24
Washer 5x20x1,5
AP8150255
£0,98 Unit Price incl. VAT
25
Fuel filler cap and lock
B043929
£252,66 Unit Price incl. VAT
26
Hex socket screw M5x14
B043864
£2,24 Unit Price incl. VAT
27
Fuel filler cap gasket
AP8104803
£26,76 Unit Price incl. VAT
28
Decal 52 WORLD CHAMPIONSHIPS
2H000481
£10,07 Unit Price incl. VAT
28
Decal 51 world championships
2B000051
£11,29 Unit Price incl. VAT
28
Fuel tank decal
899548
£17,03 Unit Price incl. VAT
29
Tank guard decal
B045128
£20,24 Unit Price incl. VAT
30
RH Fuel tank decal Factory
2H000226
£16,49 Unit Price incl. VAT
30
RH Fuel tank decal Aprilia
B045373
£4,78 Unit Price incl. VAT
31
Rubber spacer
AP8220366
£0,18 Unit Price incl. VAT
32
Rubber spacer
AP8144158
£8,17 Unit Price incl. VAT
33
Nylon washer
AP8144565
£1,27 Unit Price incl. VAT
34
Fuel pipe
858884
£113,57 Unit Price incl. VAT
35
Breather pipe
895959
£15,19 Unit Price incl. VAT
36
Inclination sensor
894604
£1 078,64 Unit Price incl. VAT
36
Security sensor
2D000037
£1 409,89 Unit Price incl. VAT
37
Fuel level sensor
899068
£149,88 Unit Price incl. VAT
38
Heat protection
894198
£37,66 Unit Price incl. VAT
40
Maintenance
B044550
£8,16 Unit Price incl. VAT
41
Screw w/ flange M5x9
AP8152339
£1,94 Unit Price incl. VAT

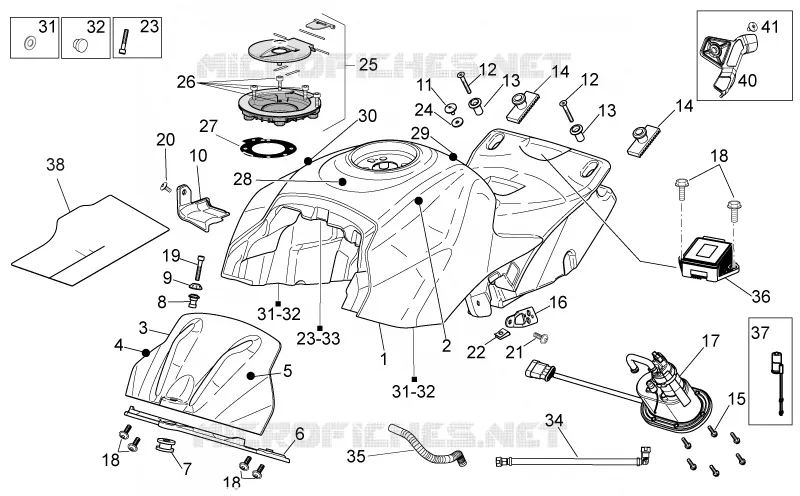

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
