1
Engine displacement
1000
2
Model
RSV4
3
Year
2014
4
Trim
RSV4 1000 APRC Factory ABS
5
Parts Catalog
Headlight
6
Parts Diagram
Parts Catalog
Drive shaft
by
Taillight
Headlight
1
2
2
3
3
4
4
5
5
6
6
7
8
8
9
10
11
12
13
14
15
15
16
1
Front light kit
2R000161
£199,97 Unit Price incl. VAT
2
Lamp H11 12V-55W
640754
£23,04 Unit Price incl. VAT
3
Lamp H8 12V 35W
893929
£14,92 Unit Price incl. VAT
4
Light adjustment self-threading screw
AP8150515
£2,22 Unit Price incl. VAT
5
Self-tap screw 5x14
AP8150509
£1,94 Unit Price incl. VAT
6
Washer 15x5,5X1,2
AP8150382
£1,88 Unit Price incl. VAT
7
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
8
Bush
AP8121032
£3,88 Unit Price incl. VAT
9
Front headlight guard
894796
£17,46 Unit Price incl. VAT
10
Headlight wiring w/harness
858867
£109,85 Unit Price incl. VAT
11
Relay 12V-30A
AP8224462
£24,32 Unit Price incl. VAT
12
Rubber spacer *
AP8220283
£2,39 Unit Price incl. VAT
13
Headlight Covers
894057
£14,60 Unit Price incl. VAT
14
Rubber spacer
AP8120405
£5,52 Unit Price incl. VAT
15
Lampholder
893930
£14,28 Unit Price incl. VAT
16
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT

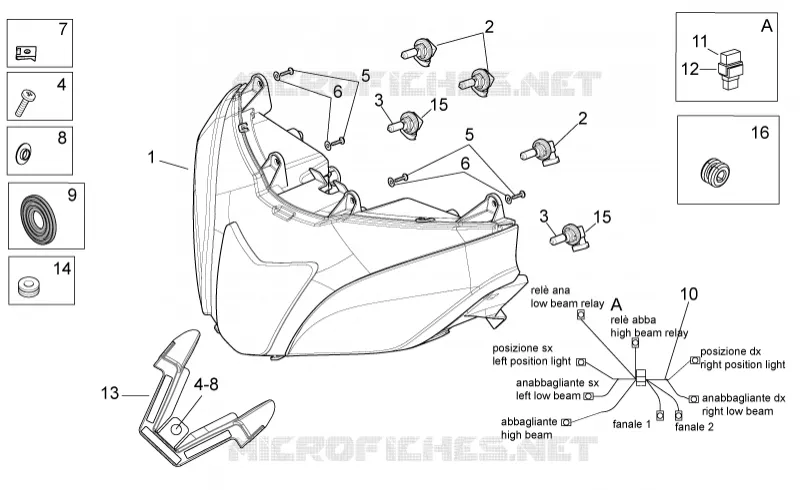

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
