1
Engine displacement
1000
2
Model
RSV
3
Year
2002
4
Trim
RSV 1000
5
Parts Catalog
Central body - Upper fairings
6

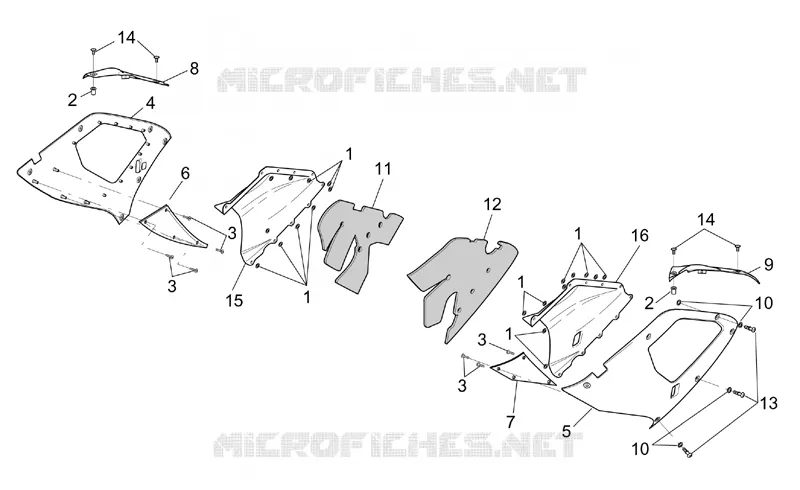

Parts Diagram
Parts Catalog
Acc. - Performance parts I
by
AIR BOX
Central body - Upper fairings
1
1
1
1
1
2
2
3
3
3
4
5
6
7
8
9
10
10
11
12
13
14
14
15
16
1
Washer for shafts D5
AP8150450
£2,20 Unit Price incl. VAT
2
Rubber w/ insert
AP8120531
£6,84 Unit Price incl. VAT
3
Self-tap screw 2,9x12
AP8150421
£1,88 Unit Price incl. VAT
4
Carène latérale D noir
AP8149912
Not Available
4
Carène lat. D, gris
AP8158566
Not Available
4
Carène lat.d.p.h.r.
AP8149948
Not Available
4
Carène latérale D noir
AP8158605
Not Available
4
Carène lat.d.p.h.r.
AP8158620
Not Available
4
Carène latérale D noir
AP8158586
Not Available
4
Carène lat.d.p.j.f.
AP8149928
Not Available
4
Carène latérale D noir
AP8149275
Not Available
4
Carène lat.d.p.j.f.
AP8158680
Not Available
4
Carène lat.d.p.b.él.
AP8158018
Not Available
4
Carène latérale D noir
AP8168138
Not Available
5
Carène latérale G noir
AP8158606
Not Available
5
Carène latérale G noir
AP8149276
Not Available
5
Carène lat. G, gris
AP8158567
Not Available
5
Carène lat.g.p.j.f.
AP8149929
Not Available
5
Carène lat.g.p.h.r.
AP8158621
Not Available
5
Carène latérale G noir
AP8158587
Not Available
5
Carène lat.g.p.b.él.
AP8158019
Not Available
5
Carène lat.g.p.h.r.
AP8149949
Not Available
5
Carène lat.g.p.j.f.
AP8158681
Not Available
5
Carène latérale G noir
AP8168139
Not Available
5
Carène latérale G noir
AP8149913
Not Available
6
RH internal fairing, black
AP8148483
£19,73 Unit Price incl. VAT
7
LH internal fairing, black
AP8148484
Not Available
8
Ferm.carène s.d.p.n.
AP8149284
£124,58 Unit Price incl. VAT
8
Upper RH fairing, yellow
AP8148949
Not Available
8
Upper RH fairing, red
AP8148915
Not Available
8
Upper RH fairing, blue
AP8148932
Not Available
8
Fermeture carène sup.D., gris
AP8158581
Not Available
9
Ferm.carène s.g.p.n.
AP8149281
£128,44 Unit Price incl. VAT
9
Upper LH fairing, yellow
AP8148950
Not Available
9
Upper LH fairing, blue
AP8148933
Not Available
9
Upper LH fairing, red
AP8148916
Not Available
9
Fermeture carène sup.G., gris
AP8158579
Not Available
10
Front dust cover ring
AP8120622
£1,36 Unit Price incl. VAT
11
Pann.insonoris.sup.d
AP8117168
£49,44 Unit Price incl. VAT
12
Pann.insonoris.sup.g
AP8117169
Not Available
13
Pin
AP8121253
£15,08 Unit Price incl. VAT
14
Screw w/ flange M5x12
AP8152302
Not Available
15
Extracteur droit carb.
AP8149930
Not Available
15
Extracteur droit noir
AP8149837
Not Available
15
Extracteur droit noir
AP8149950
Not Available
15
Extracteur droit carb.
AP8149282
Not Available
15
Extracteur droit noir
AP8158568
Not Available
15
Extracteur droit carb.
AP8149839
Not Available
16
Extracteur gauche noir
AP8158569
Not Available
16
Extracteur gauche carb.
AP8149931
Not Available
16
Extracteur gauche carb.
AP8149283
Not Available
16
Extracteur gauche noir
AP8149838
Not Available
16
Extracteur gauche noir
AP8149951
Not Available
16
Extracteur gauche carb.
AP8149840
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
