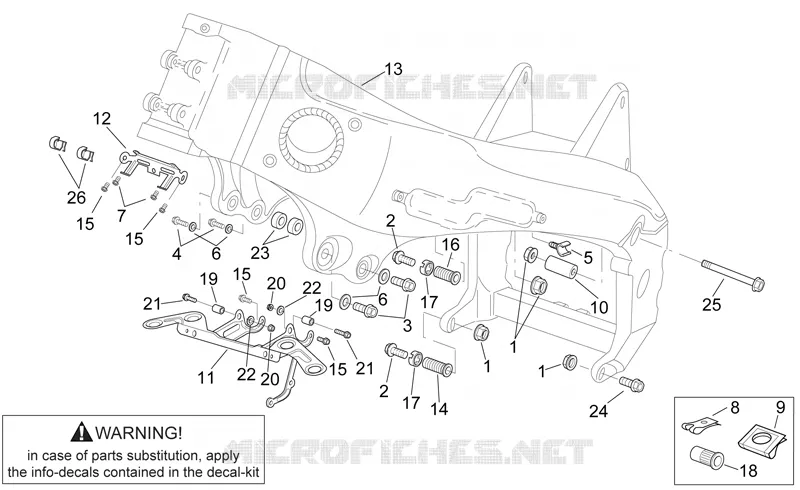

Frame III
1
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
15
15
16
17
17
18
19
19
20
20
21
21
22
22
23
24
25
26
1
Self-locking nut
AP8152301
£1,94 Unit Price incl. VAT
2
Screw w/ flange M10x100
AP8152317
£14,06 Unit Price incl. VAT
3
Screw w/ flange M10x35
AP8152318
£3,62 Unit Price incl. VAT
4
Screw w/ flange
AP8152325
£2,66 Unit Price incl. VAT
5
Cable-guide
AP8220269
£2,68 Unit Price incl. VAT
5
Cable-guide
AP8120582
£6,47 Unit Price incl. VAT
6
Curved spring washer *
AP8150292
£1,88 Unit Price incl. VAT
7
Screw w/ flange M6x16
AP8152246
£4,03 Unit Price incl. VAT
8
Clip M5
AP8102375
£2,20 Unit Price incl. VAT
9
Clip M6
AP8102376
Not Available
10
Upper engine spacer
AP8121998
Not Available
11
Lower water cooler support
AP8134379
£45,26 Unit Price incl. VAT
12
Water cooler upper support
AP8134380
£31,02 Unit Price incl. VAT
13
Frame
AP8146355
Not Available
13
Frame
AP8135897
Not Available
14
Lower adjustment bush
AP8121997
£19,60 Unit Price incl. VAT
15
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
16
Upper adjustment bush
AP8121996
£20,90 Unit Price incl. VAT
17
Eng.connect.elem.ring nut
AP8121995
£12,91 Unit Price incl. VAT
18
Threaded rivet M6
AP8102544
£3,68 Unit Price incl. VAT
19
Conical bush
AP8121313
Not Available
20
Low self-locking nut
AP8150430
£1,27 Unit Price incl. VAT
21
Screw w/ flange M6x30
AP8152281
£1,80 Unit Price incl. VAT
22
Washer 6,4x15x1
AP8152181
£0,24 Unit Price incl. VAT
23
LH front engine spacer
AP8121254
£2,95 Unit Price incl. VAT
24
Screw w/ flange M10x75
AP8152316
£13,28 Unit Price incl. VAT
25
Screw w/ flange M10x110
AP8152315
Not Available
26
Black cable guide
AP8201727
£1,14 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
