1
Engine displacement
1000
2
Model
RSV
3
Year
1998
4
Trim
RSV 1000
5
Parts Catalog
Saddle
6
Parts Diagram
Parts Catalog
Fuel tank
by
Rear body - Rear fairing

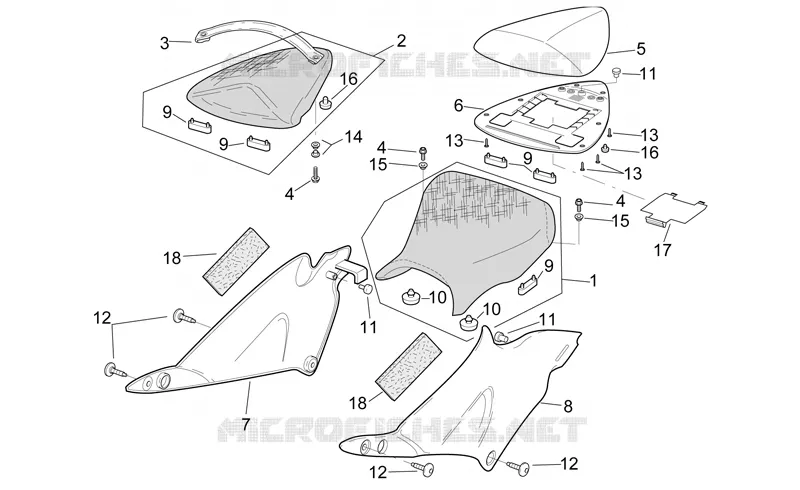

Saddle
1
2
3
4
4
4
5
6
7
8
9
9
9
9
10
10
11
11
11
12
12
12
13
13
13
14
15
15
16
16
17
18
18
1
Driver saddle, black
AP8129169
Not Available
2
Rear saddle, black
AP8129170
Not Available
3
Pillion seat strap
AP8129211
Not Available
4
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
5
Saddle cover, fluo red
AP8138585
Not Available
5
Saddle cover, grey
AP8139420
Not Available
6
Saddle cover base
AP8129204
Not Available
7
RH side panel, anod.grey
AP8138587
Not Available
8
LH side panel, anod.grey
AP8138589
Not Available
9
Saddle rubber
AP8126701
£14,72 Unit Price incl. VAT
10
Rubber spacer
AP8126702
£7,70 Unit Price incl. VAT
11
Rubber spacer
AP8144081
£3,42 Unit Price incl. VAT
12
Screw w/ flange M6x16
AP8152246
£4,03 Unit Price incl. VAT
13
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
14
Bush
AP8121991
£3,60 Unit Price incl. VAT
15
T bush *
AP8221145
£9,78 Unit Price incl. VAT
16
Rubber spacer
AP8220349
£3,10 Unit Price incl. VAT
17
Saddle cover access door
AP8138947
Not Available
18
Adhesive sponge
AP8117125
£8,82 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
