1
Engine displacement
1000
2
Model
RSV
3
Year
1998
4
Trim
RSV 1000
5
Parts Catalog

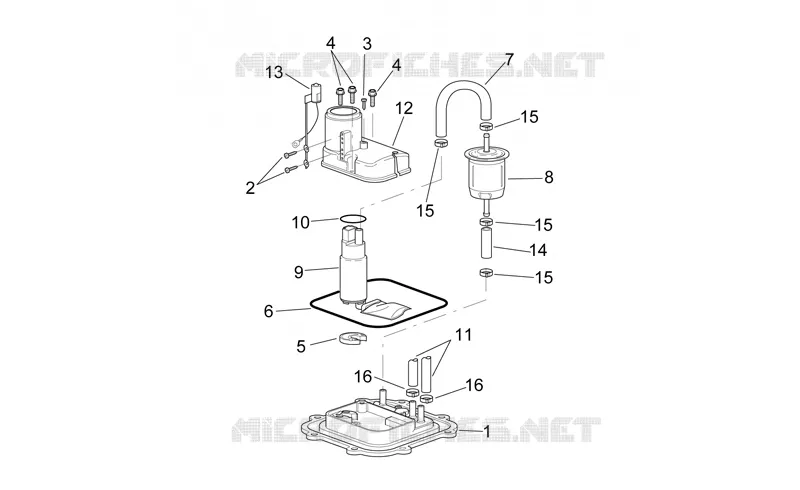

Fuel pump I
6
Parts Diagram
Parts Catalog
Air box
by
Fuel pump II
Fuel pump I
1
2
3
4
4
5
6
7
8
9
10
11
12
13
14
15
15
15
15
16
16
1
Fuel pump flange
AP8106386
Not Available
2
Self-tap screw 2,9x12
AP8150421
£1,88 Unit Price incl. VAT
3
Self-tap screw 3,9x14
AP8150413
£1,61 Unit Price incl. VAT
4
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
5
Fuel pump rubber
AP8144003
Not Available
6
O-ring 199
AP8144010
Not Available
7
Fuel pipe pump-filter
AP8120990
Not Available
8
Fuel filter
AP8102627
Not Available
9
Fuel pump
AP8106385
Not Available
10
O-ring 3125
AP8144011
£5,00 Unit Price incl. VAT
11
Breather pipe 7,5x12,5
AP8120993
Not Available
12
Fuel pump support
AP8138624
Not Available
13
Level sensor
AP8124297
Not Available
14
Fuel pipe 7,5x14,5
AP8120991
Not Available
15
White hose clip D.13,5x6
AP8102765
£6,40 Unit Price incl. VAT
16
Hose clamp 12,5x8
AP8102239
£3,06 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
