1
Engine displacement
1000
2
Model
RST-FUTURA
3
Year
2002
4
Trim
RST 1000 Futura
5
Parts Catalog
Fuel pump
6

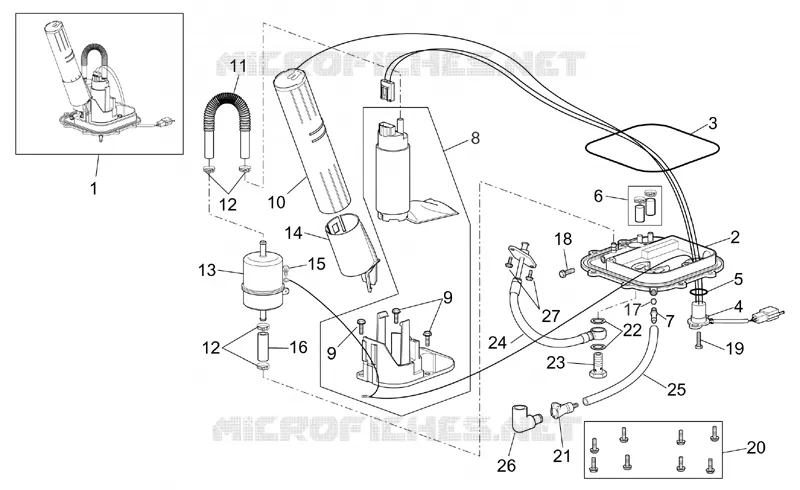

Parts Diagram
Parts Catalog
Air box
by
Exhaust pipe
Fuel pump
1
2
3
4
5
6
7
8
9
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
Fuel pump cpl.
AP8106865
Not Available
2
Fuel pump flange
AP8134750
£137,93 Unit Price incl. VAT
3
Gasket ring
AP8144477
Not Available
4
Fuel pump wiring
AP8124664
£119,15 Unit Price incl. VAT
5
Gasket ring
AP8144475
Not Available
6
Pipe closing breather set
AP8104375
Not Available
7
Joint
AP8104374
£18,82 Unit Price incl. VAT
8
Fuel pump
AP8106888
Not Available
9
screw
AP8121536
Not Available
10
Level sensor
AP8124588
Not Available
11
Fuel pipe
AP8144226
£52,66 Unit Price incl. VAT
12
Hose clamp
AP8104373
Not Available
13
Fuel filter
AP8102971
£53,62 Unit Price incl. VAT
14
Level sensor holder
AP8134802
Not Available
15
Self-tap screw
AP8121537
Not Available
16
Fuel pipe
AP8144476
£15,25 Unit Price incl. VAT
17
Gasket
AP8144227
£1,73 Unit Price incl. VAT
18
screw
AP8121540
Not Available
19
screw
AP8121538
Not Available
20
Screw w/ flange M5x15
AP8152273
£1,88 Unit Price incl. VAT
21
Joint
AP8102829
Not Available
22
Gasket 18x12,2x1,5
AP8106444
Not Available
23
Bored screw
AP8106443
£24,94 Unit Price incl. VAT
24
Fuel pipe
AP8144364
Not Available
25
Fuel pipe 6x13
AP8144069
Not Available
26
Male tip union
AP8104993
£38,83 Unit Price incl. VAT
27
Screw w/ flange M5x12
AP8152272
£1,88 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
