1
Engine displacement
1000
2
Model
RST-FUTURA
3
Year
2003
4
Trim
RST 1000 Futura
5
Parts Catalog
Marzocchi front fork - Hubs, sleeves
6
Parts Diagram
Parts Catalog
Showa front fork - Hubs, sleeves
by
Swing arm

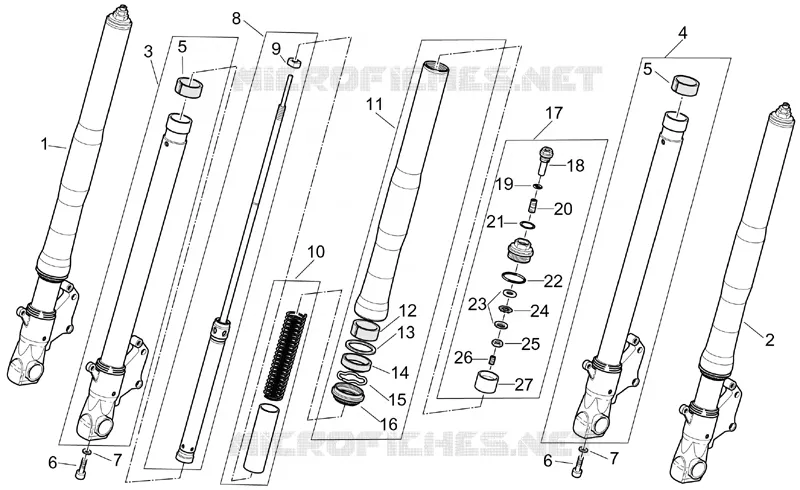

Marzocchi front fork - Hubs, sleeves
1
2
3
4
5
5
6
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
1
RH hub cpl.
AP8163139
Not Available
2
LH hub cpl.
AP8163140
Not Available
3
Hub+RH fork leg
AP8163127
Not Available
4
Hub+LH fork leg
AP8163126
Not Available
5
Bush
AP8163128
Not Available
6
Screw M10x30
AP8123216
£7,48 Unit Price incl. VAT
7
Seal washer
AP8123206
£13,58 Unit Price incl. VAT
8
Plunger, complete
AP8163129
Not Available
9
Nut M12x1,25
AP8163144
Not Available
10
Springs+tube
AP8163136
Not Available
11
Sleeve cpl.
AP8163130
Not Available
12
Bush
AP8163131
Not Available
13
Ring
AP8163132
Not Available
14
Oil seal
AP8163133
£33,85 Unit Price incl. VAT
15
Circlip
AP8163134
£22,14 Unit Price incl. VAT
16
Dust cover
AP8163135
Not Available
17
Sleeve plug cpl.
AP8163137
Not Available
18
Pin
AP8134863
Not Available
19
O-ring
AP8163143
Not Available
20
Dowel
AP8150498
Not Available
21
O-ring
AP8163142
Not Available
22
O-ring
AP8163138
Not Available
23
Fifth wheel
AP8121582
Not Available
24
Bearing
AP8125895
Not Available
25
Nut M17x1
AP8163145
Not Available
26
Dowel
AP8150497
Not Available
27
Washer
AP8163141
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
