1
Engine displacement
1000
2
Model
RST-FUTURA
3
Year
2001
4
Trim
RST 1000 Futura
5
Parts Catalog
Ignition unit
6

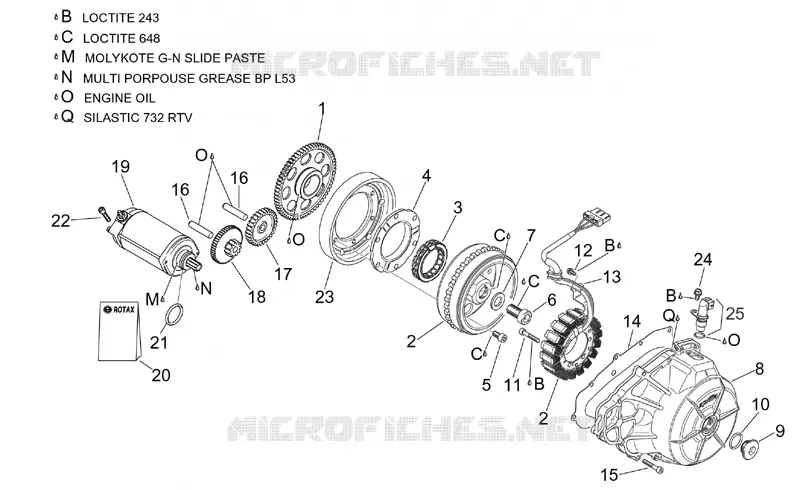

Parts Diagram
Parts Catalog
Water pump
by
Throttle body
Ignition unit
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
1
Sprag clutch gear z=64
AP0634595
Not Available
2
Ignition unit 12V-420W
AP0295835
Not Available
3
Sprag clutch
AP0659110
£597,73 Unit Price incl. VAT
4
Sprag clutch housing
AP0659125
Not Available
5
Hex socket screw
AP0641505
Not Available
6
Hex socket screw m16x30
AP0241541
Not Available
7
Washer a17
AP0627270
Not Available
8
Ignition cover
AP0211655
Not Available
9
Cover m24x1,5
AP0241631
Not Available
10
O-ring 23,3x2,4
AP0430782
£5,32 Unit Price incl. VAT
11
Hex socket screw M6x40
AP0241816
Not Available
12
Self-tap screw M5x12
AP0941935
Not Available
13
Cable protection
AP0251160
Not Available
14
Gasket
AP0650340
Not Available
15
Hex socket screw
AP0241811
Not Available
16
Pin M6x50
AP0229301
Not Available
17
Idle gear
AP0634600
Not Available
18
Double gear
AP0634740
Not Available
19
Starter motor cpl.
AP0294356
Not Available
20
Starter motor revision kit
AP0294352
Not Available
21
O-ring 24,4x3,1
AP0250140
Not Available
22
Hex socket screw
AP0840882
Not Available
23
Flywheel rotor
AP0265040
Not Available
24
Screw w/ flange
AP0240385
Not Available
25
Drive shaft pos.sensor
AP8124865
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
