1
Engine displacement
1000
2
Model
RST-FUTURA
3
Year
2003
4
Trim
RST 1000 Futura
5
Parts Catalog
Saddle
6

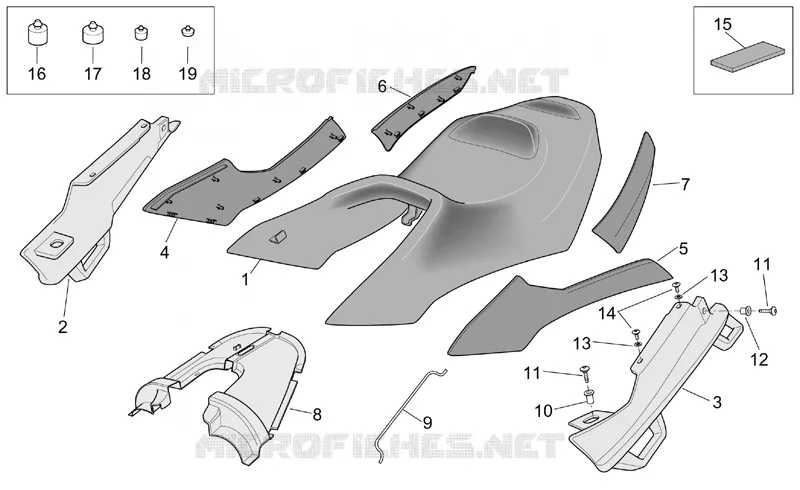

Parts Diagram
Parts Catalog
Fuel tank
by
Undersaddle
Saddle
1
2
3
4
5
6
7
8
9
10
11
11
12
13
13
14
15
16
17
18
19
1
Saddle
AP8129395
Not Available
1
Saddle
AP8129258
Not Available
1
Saddle
AP8129396
Not Available
2
RH bags support, blue
AP8158077
Not Available
2
RH Side case sup.sup., grey
AP8158859
Not Available
2
RH bags support, silver
AP8134717
Not Available
2
RH bags support, red
AP8158063
Not Available
3
LH bags support, blu
AP8158078
Not Available
3
LH bags support, silver
AP8134718
Not Available
3
LH Side case sup.sup., grey
AP8158860
Not Available
3
LH bags support, red
AP8158064
Not Available
4
RH seat front side panel
AP8168861
Not Available
4
RH seat front side panel, blue
AP8158219
Not Available
4
RH seat front side panel
AP8158861
Not Available
4
RH seat front side panel, red
AP8158213
Not Available
4
RH seat front side panel, silver
AP8158188
Not Available
5
LH seat front side panel, silver
AP8158189
Not Available
5
LH seat front side panel, red
AP8158214
Not Available
5
LH seat front side panel
AP8168862
Not Available
5
LH seat front side panel, blue
AP8158220
Not Available
5
LH seat front side panel
AP8158862
Not Available
6
RH seat rear side panel
AP8168870
Not Available
6
RH seat rear side panel, blue
AP8158221
Not Available
6
RH seat rear side panel, red
AP8158215
Not Available
6
RH seat rear side panel, silver
AP8158190
Not Available
6
RH seat rear side panel
AP8168863
Not Available
6
RH seat rear side panel
AP8158868
Not Available
7
LH seat rear side panel
AP8168871
Not Available
7
LH seat rear side panel
AP8158869
Not Available
7
LH seat rear side panel, silver
AP8158191
Not Available
7
LH seat rear side panel, red
AP8158216
Not Available
7
LH seat rear side panel
AP8168864
Not Available
7
LH seat rear side panel, blue
AP8158222
Not Available
8
Saddle supp.lower lockup
AP8149304
Not Available
9
Fuel tank support rod
AP8134396
£39,65 Unit Price incl. VAT
10
T bush
AP8121716
£3,42 Unit Price incl. VAT
11
Hex socket screw M8x30
AP8152056
£2,59 Unit Price incl. VAT
12
T bush 8,5x10,7x12
AP8221128
£2,20 Unit Price incl. VAT
13
Washer 6,4x15x1
AP8152181
£0,24 Unit Price incl. VAT
14
Hex socket screw M6x20
AP8152137
£2,34 Unit Price incl. VAT
15
Adhesive sponge 15x8
AP8117004
Not Available
16
Saddle rubber
AP8144569
Not Available
17
Saddle rubber
AP8144568
Not Available
18
Saddle rubber
AP8144567
Not Available
19
Saddle rubber
AP8144566
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
