1
Engine displacement
1000
2
Model
RST-FUTURA
3
Year
2001
4
Trim
RST 1000 Futura
5
Parts Catalog

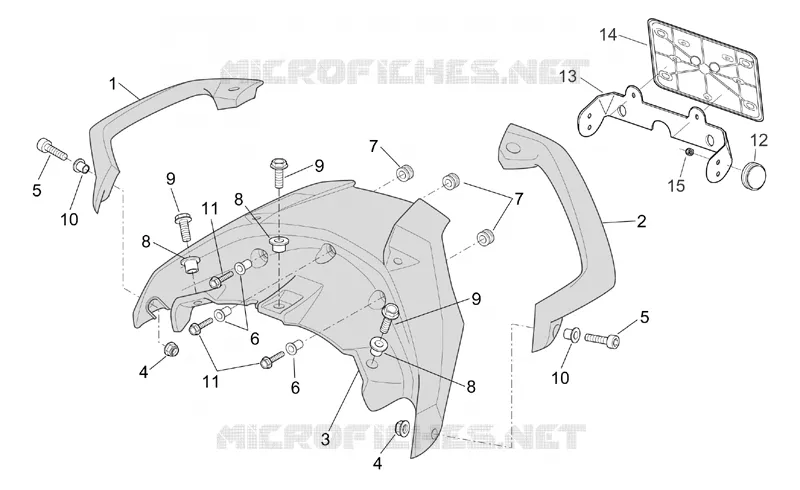

Rear body
6
Parts Diagram
Parts Catalog
Undersaddle
by
Side cases
Rear body
1
2
3
4
4
5
5
6
6
7
7
8
8
8
9
9
9
10
10
11
11
12
13
14
15
1
RH pillion grab bar, grey
AP8149974
Not Available
1
Pillion grab bar dx v.nero
AP8168857
Not Available
2
Pillion grab bar sx v.nero
AP8168858
Not Available
2
LH pillion grab bar, grey
AP8149975
Not Available
3
Rear handle, black
AP8168856
Not Available
3
Rear handle, grey
AP8148275
Not Available
3
Rear handle, grey
AP8149761
Not Available
4
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
5
Hex socket screw M8x25
AP8150170
£4,73 Unit Price incl. VAT
6
T bush *
AP8121725
£1,88 Unit Price incl. VAT
7
Filter housing rubber
AP8220370
£2,98 Unit Price incl. VAT
8
T bush
AP8125855
Not Available
9
Screw w/ flange M8x20
AP8152286
£2,63 Unit Price incl. VAT
10
T bush
AP8125882
£1,80 Unit Price incl. VAT
11
Screw w/ flange M6x25
AP8152280
£2,48 Unit Price incl. VAT
12
Rear reflector, red
AP8224164
£11,33 Unit Price incl. VAT
13
Rear reflector support
AP8258253
£37,45 Unit Price incl. VAT
14
Number plate support
AP8149034
£25,42 Unit Price incl. VAT
15
Self-locking nut M5
AP8152306
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
