1
Engine displacement
50
2
Model
RS
3
Year
2000
4
Trim
RS 50
5
Parts Catalog
Water cooler
6
Parts Diagram
Parts Catalog
LH Controls
by
Air box
Water cooler
1
2
3
3
4
5
6
7
8
9
10
11
12
12
12
12
13
13
13
13
13
14
15
16
17
18
19
20
21
1
Water cooler
AP8201476
Not Available
2
Water cooler support
AP8234158
£22,96 Unit Price incl. VAT
3
Silent-block
AP8101372
£1,88 Unit Price incl. VAT
4
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
5
Filler cap
AP8201312
Not Available
6
Rad cap w/ vent
AP8201463
Not Available
7
Hose clamp D25-45x8*
AP8220104
£4,25 Unit Price incl. VAT
8
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
9
Water rad.feed pipe
AP8220235
Not Available
10
Clip M6
AP8102376
Not Available
11
Rubber fabric reinforced hose
AP8220450
£21,42 Unit Price incl. VAT
11
pipe
AP8206977
Not Available
12
Hose clamp 12,5x8
AP8102239
£3,06 Unit Price incl. VAT
12
Hose clip D.8
AP8202177
Not Available
13
Hose clip D23,5x8*
AP8101927
£3,77 Unit Price incl. VAT
14
Tee union
AP8220415
Not Available
15
Water cooler-pump tube
AP8220613
Not Available
15
Water cooler-pump tube
AP8220496
Not Available
16
Pump connection hose
AP8220512
Not Available
17
Water cooler-head tube
AP8220511
£16,92 Unit Price incl. VAT
18
Hose clip D25x8,6
AP8101722
£7,85 Unit Price incl. VAT
19
Dashboard lockup, black
AP8239450
Not Available
20
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
21
Hose clip D22x8,6*
AP8201169
£5,05 Unit Price incl. VAT

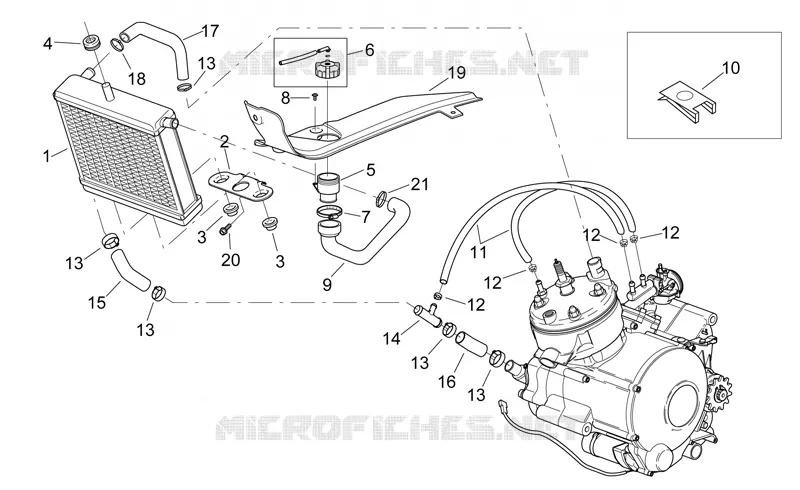

Find the detailed Water cooler APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
