Parts Catalog
Front wheel
6
Parts Diagram
Parts Catalog
Exhaust unit
by
Rear wheel
Front wheel
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
19
20
21
22
23
24
25
26
1
Front wheel, black
AP8208911
Not Available
1
Front wheel, black
AP8208735
Not Available
1
Front wheel, black
AP8208573
Not Available
1
Front wheel, red
AP8208867
Not Available
1
Front wheel v.oro
AP8208803
Not Available
1
Front wheel, red
AP8128119
Not Available
2
Tyre
0000000
Not Available
3
Spacer
AP8225335
£12,47 Unit Price incl. VAT
4
Pin
AP8225354
£44,24 Unit Price incl. VAT
5
Odometer gear cover
AP8201671
Not Available
6
Odometer gear
AP8201230
£45,95 Unit Price incl. VAT
7
Washer 12x24x3
AP8225237
Not Available
8
Tubeless tyre valve
AP8201546
£5,35 Unit Price incl. VAT
9
Spacer
AP8125431
Not Available
10
Washer 12x24x3
AP8225237
Not Available
11
Nut M12x1,25*
AP8225195
£2,59 Unit Price incl. VAT
12
Front brake disc
AP8213311
£115,37 Unit Price incl. VAT
13
screw
AP8213419
Not Available
14
Washer 6,4x10x,7*
AP8152105
£1,27 Unit Price incl. VAT
14
Washer
AP8225206
Not Available
15
Bearing
AP8225123
£40,42 Unit Price incl. VAT
16
Front brake caliper rev. kit
AP8213423
Not Available
17
Pads pair
AP8113478
Not Available
18
Bleed valve cap
AP8113005
£5,94 Unit Price incl. VAT
19
Air bleed valve
AP8213108
£28,56 Unit Price incl. VAT
20
Front brake caliper, black
AP8213517
Not Available
20
Front brake caliper, red
AP8213413
Not Available
21
Oil pipe screw
AP8113003
£2,08 Unit Price incl. VAT
22
Washer 10x14x1,6*
AP8113004
£1,87 Unit Price incl. VAT
23
Front brake hose
AP8213312
Not Available
24
Screw w/ flange M8x30
AP8152288
£2,20 Unit Price incl. VAT
25
Washer 8,5x15x0,8
AP8150376
£1,76 Unit Price incl. VAT
26
Brake hose hanger
AP8134167
£18,38 Unit Price incl. VAT

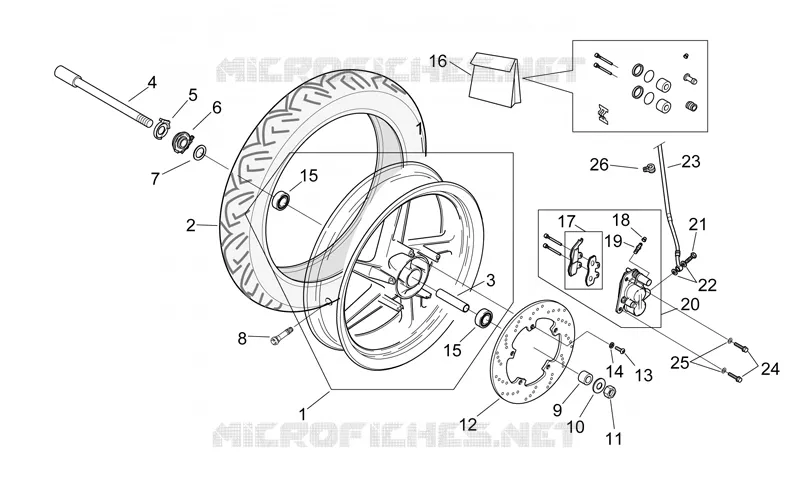

Find the detailed Front wheel APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
