1
Engine displacement
50
2
Model
RS
3
Year
2001
4
Trim
RS 50
5
Parts Catalog
Lock hardware kit
6
Parts Diagram
Parts Catalog
Electrical system
by
Op.'s handbooks and decal
Lock hardware kit
1
2
3
4
5
6
7
7
8
9
10
11
12
13
14
15
16
17
1
Lock kit
AP8202358
Not Available
1
Lock kit
AP8202083
Not Available
2
Toolkit
AP8202097
Not Available
3
Main switch - steering lock
AP8224155
Not Available
3
Main switch - steering lock
AP8224570
Not Available
4
Aprilia milled key
AP8102880
Not Available
4
"Aprilia" key w/out transpo.
AP8140710
£20,52 Unit Price incl. VAT
5
Crom.tank plug
AP8102228
Not Available
5
Fuel filler cap
AP8202380
Not Available
6
Saddle lock
AP8202379
£56,45 Unit Price incl. VAT
6
Saddle lock
AP8102119
Not Available
7
Hex socket screw M4x10
AP8152043
£1,88 Unit Price incl. VAT
8
Ring nut fuel filler cap
AP8102361
Not Available
9
Saddle lock fix.plate
AP8135260
£2,30 Unit Price incl. VAT
10
Washer 6,6x18x1,6*
AP8150015
£1,88 Unit Price incl. VAT
11
Hex socket screw
AP8152123
£1,27 Unit Price incl. VAT
12
Low nut M19x1*
AP8152194
£2,42 Unit Price incl. VAT
13
Notched washer
AP8221312
£1,88 Unit Price incl. VAT
14
Saddle lock cup
AP8229207
Not Available
15
Hex socket screw M8x16
AP8150211
Not Available
16
Special screw M8x15
AP8150349
£6,97 Unit Price incl. VAT
17
Main switch wiring
AP8224577
Not Available

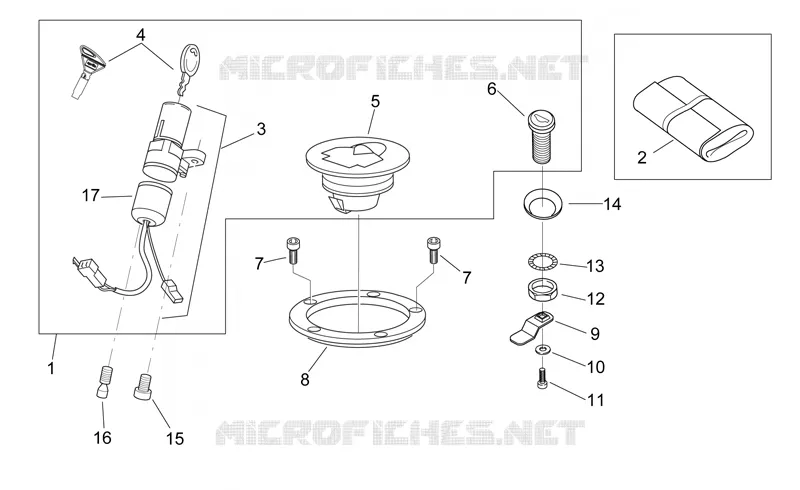

Find the detailed Lock hardware kit APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
