1
Engine displacement
50
2
Model
RS
3
Year
2000
4
Trim
RS 50
5
Parts Catalog
RH controls
6
Parts Diagram
Parts Catalog
Dashboard
by
LH Controls
RH controls
1
2
3
4
5
6
7
8
9
10
11
12
12
13
14
15
16
17
18
19
20
21
22
23
24
1
Front brake switch+harness
AP8212196
Not Available
2
Ball 7,1
AP8201326
£0,92 Unit Price incl. VAT
3
Anti.v weight, black
AP8202134
Not Available
4
Handgrip - pair
AP8118287
£17,27 Unit Price incl. VAT
5
Front brake lever
AP8213422
Not Available
6
Tank cover
AP8213477
£26,70 Unit Price incl. VAT
7
Pump revision kit
AP8213420
Not Available
8
screw
AP8213421
Not Available
9
U-bolt
AP8213078
£26,52 Unit Price incl. VAT
10
Brake lever pin
AP8113413
£19,42 Unit Price incl. VAT
11
Nut
AP8218345
Not Available
12
Washer
AP8213281
Not Available
13
Master cyl.level window
AP8213277
Not Available
14
Front master cilinder
AP8213436
Not Available
15
RH handgrip washer
AP8121826
Not Available
16
Throttle w/out hand grip
AP8118316
Not Available
17
Throttle+hand grip
AP8118307
£18,86 Unit Price incl. VAT
18
Right half handlebar
AP8218340
Not Available
19
Throttle cable
AP8214236
Not Available
19
Throttle cable
AP8214218
Not Available
19
Throttle cable
AP8214180
Not Available
20
Screw 2,2x12,7
AP8150238
£1,01 Unit Price incl. VAT
21
Hex socket screw M10x60
AP8150481
Not Available
22
Washer
AP8152220
£3,24 Unit Price incl. VAT
23
RH lights selector
AP8224160
Not Available
23
RH lights selector
AP8224117
£112,19 Unit Price incl. VAT
23
RH lights selector
AP8224303
£147,34 Unit Price incl. VAT
23
RH lights selector
AP8224300
Not Available
23
RH lights selector
AP8224185
£197,80 Unit Price incl. VAT
24
Hex socket screw M6x35
AP8150285
£1,94 Unit Price incl. VAT

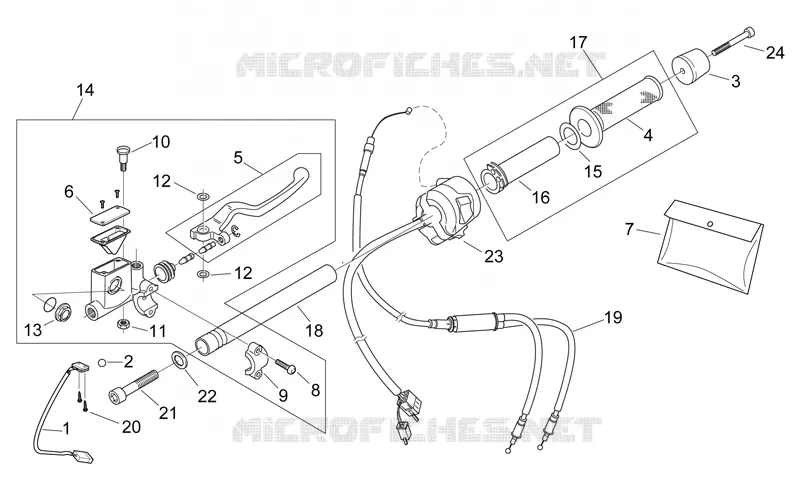

Find the detailed RH controls APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
