1
Engine displacement
50
2
Model
RS
3
Year
1996
4
Trim
RS 50
5
Parts Catalog
Electrical system I
6

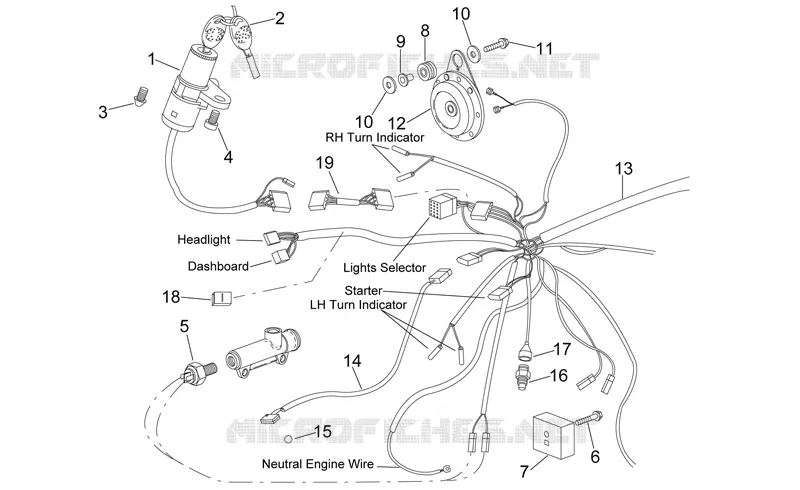

Parts Diagram
Parts Catalog
Electrical system
by
Electrical system II
Electrical system I
1
2
3
4
5
6
7
8
9
10
10
11
12
13
14
15
16
17
18
19
1
Main switch - steering lock
AP8112710
Not Available
1
Main switch - steering lock
AP8212342
£101,60 Unit Price incl. VAT
2
Aprilia milled key
AP8102880
Not Available
3
Special screw M8x15
AP8150349
£6,97 Unit Price incl. VAT
4
Hex socket screw M8x16
AP8150211
Not Available
5
Stop switch
AP8124479
£36,77 Unit Price incl. VAT
6
Screw w/ flange M6x30
AP8152281
£1,80 Unit Price incl. VAT
7
Voltage regulator
AP8212121
Not Available
8
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
9
T bush
AP8121665
£2,22 Unit Price incl. VAT
10
Washer 6,6x18x1,6*
AP8150015
£1,88 Unit Price incl. VAT
11
Screw w/ flange M6x20
AP8152279
£1,87 Unit Price incl. VAT
12
Horn
AP8212421
Not Available
13
Main wiring harness
AP8212418
Not Available
14
Front brake switch+harness
AP8212196
Not Available
15
Ball 7,1
AP8201326
£0,92 Unit Price incl. VAT
16
Thermistor
AP8222019
Not Available
17
Rubber spacer *
AP8120482
£2,04 Unit Price incl. VAT
18
Clump
AP8212544
Not Available
19
Lights wiring
AP8224017
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
