1
Engine displacement
50
2
Model
RS
3
Year
1998
4
Trim
RS 50
5
Parts Catalog

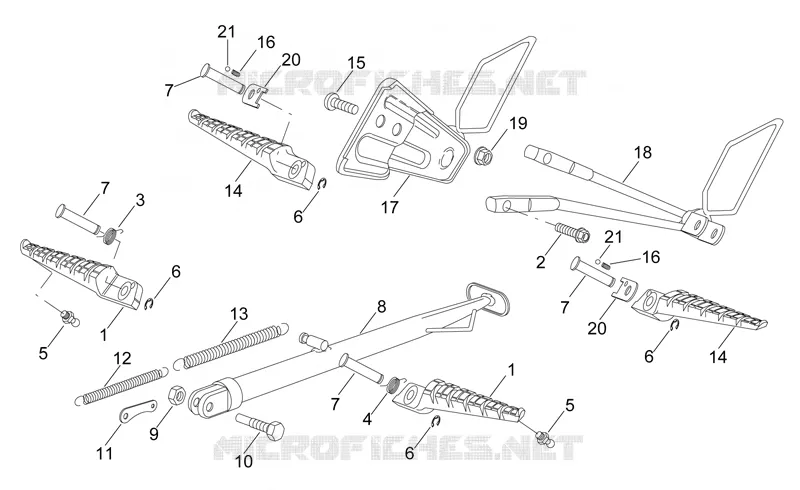

Foot rests - Lateral stand
6
Parts Diagram
Parts Catalog
Frame
by
Front fork I
Foot rests - Lateral stand
1
1
2
3
4
5
5
6
6
6
6
7
7
7
7
8
9
10
11
12
13
14
14
15
16
16
17
18
19
20
20
21
21
1
Front footrest, pair
AP8135313
Not Available
2
Screw w/ flange M8x25
AP8152287
£2,63 Unit Price incl. VAT
3
RH front footrest spring
AP8221181
Not Available
4
LH front footrest spring
AP8221182
Not Available
5
Footrest pin
AP8121134
£3,25 Unit Price incl. VAT
6
Stop ring
AP8120573
£0,73 Unit Price incl. VAT
7
Footrest pin
AP8221057
£5,03 Unit Price incl. VAT
8
Lateral stand, phor. black
AP8232915
Not Available
9
Low nut M10x1,25
AP8152001
£2,63 Unit Price incl. VAT
10
Central stand fixing screw
AP8152310
Not Available
11
Lateral stand plate
AP8134266
£22,46 Unit Price incl. VAT
12
Coil pull spring *
AP8121696
£13,69 Unit Price incl. VAT
13
Coil pull spring *
AP8121695
£23,99 Unit Price incl. VAT
14
Rear footrests, pair
AP8132812
Not Available
15
Hex socket screw M8x20
AP8152058
£1,88 Unit Price incl. VAT
16
Coil compress. spring
AP8121133
£3,22 Unit Price incl. VAT
17
RH footrest support al fin.
AP8232975
Not Available
18
LH footrest support alum.
AP8232974
Not Available
19
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
20
Footrest plate
AP8132720
Not Available
21
Ball D6,35
AP8101861
£0,36 Unit Price incl. VAT
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
