1
Engine displacement
50
2
Model
RS
3
Year
1993
4
Trim
RS 50
5
Parts Catalog
Front wheel
6

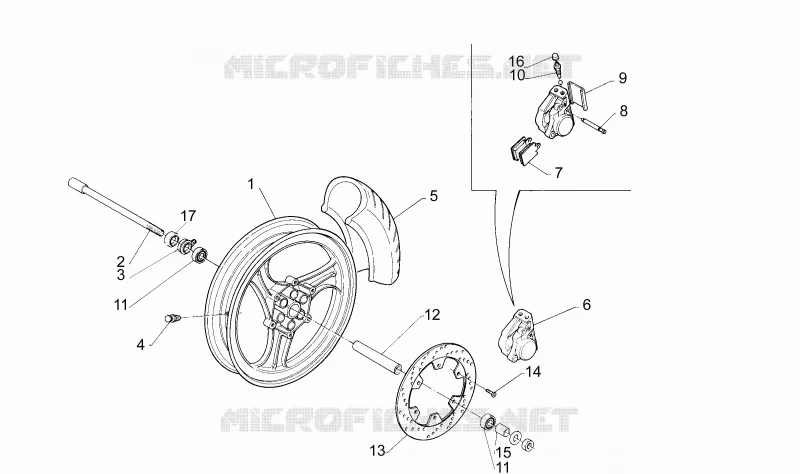

Parts Diagram
Parts Catalog
Primary gear shaft 5 Speed
by
Frame
Front wheel
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
1
Front wheel, black
AP8208335
Not Available
1
Front wheel, violet
AP8208359
Not Available
2
Pin
AP8225151
Not Available
3
Odometer gear
AP8201230
£45,95 Unit Price incl. VAT
4
Tubeless tyre valve
AP8101744
£14,65 Unit Price incl. VAT
5
Missing description
AP
Not Available
6
Front brake caliper
AP8213196
Not Available
7
Pads pair
AP8213200
Not Available
8
Brake caliper pin
AP8213198
£31,32 Unit Price incl. VAT
9
Brake caliper cover
AP8213199
Not Available
10
Air bleed valve
AP8113353
Not Available
11
Bearing
AP8225123
£40,42 Unit Price incl. VAT
12
Spacer
AP8225212
Not Available
13
Front brake disc
AP8213184
Not Available
14
Hex socket screw M6x14
AP8152156
£1,88 Unit Price incl. VAT
15
Spacer
AP8125431
Not Available
16
Bleed valve cap
AP8113070
£13,98 Unit Price incl. VAT
17
Odometer gear cover
AP8201671
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
