1
Engine displacement
50
2
Model
RS
3
Year
1994
4
Trim
RS 50
5
Parts Catalog

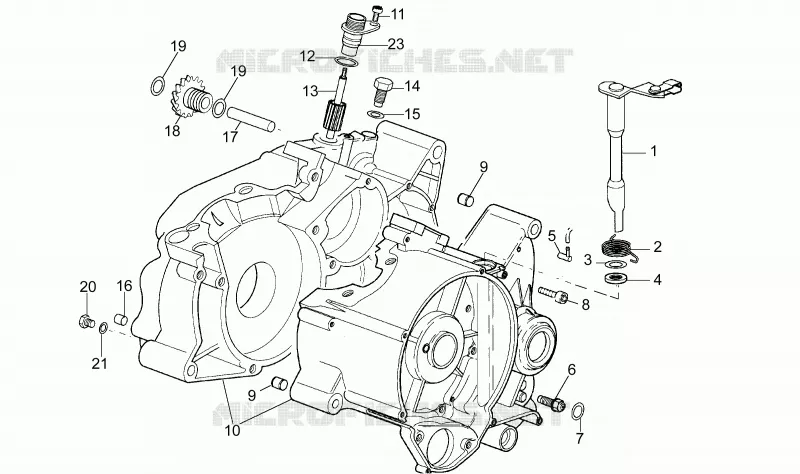

Crankcase
6
Parts Diagram
Parts Catalog
Driven shaft 5 speed gearbox
by
Gear box selector
Crankcase
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
15
16
17
18
19
19
20
21
23
1
Clutch lever cpl.
AP8206257
Not Available
2
Clutch lever return spring
AP8206259
Not Available
3
Blue steel washer D15x25x0,5
AP8206278
Not Available
4
Oil seal D15x24x5
AP8509179
Not Available
5
Oil breather union
AP8206340
Not Available
6
Neutral indicator switch+seal
AP8206429
Not Available
7
Gasket 9,9x16x1
AP8206288
Not Available
8
Screw M6x40
AP8206276
Not Available
9
Crankcase pin D11,5x12
AP8206295
Not Available
10
Crankcase assy
AP8206603
Not Available
11
Screw M6x12
AP8206202
Not Available
12
O-ring D11,8x2,4
AP8206262
Not Available
13
Tachometer driven gear
AP8206251
Not Available
14
Hex stop scrw M12x1,25
AP8502589
Not Available
15
Gasket D12x17x1
AP8502757
£9,98 Unit Price incl. VAT
16
Pin D8,51x7,6
AP8509209
Not Available
17
Tachometer drive spindle
AP8206299
Not Available
18
Tachometer driving gear
AP8206252
Not Available
19
Blue steel washer D8,4x16
AP8206277
Not Available
20
Oil drain hex screw M8x10
AP8502586
Not Available
21
Oil plug seal D8x14
AP8502759
Not Available
23
Tachometer ouput flange
AP8206240
Not Available
24
Engine cpl.
CM1513135
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
