Parts Catalog
Cooling system
6
Parts Diagram
Parts Catalog
Tank cover
by
Drive shaft
Cooling system
1
2
3
4
5
5
6
6
7
8
9
10
11
12
13
13
14
14
15
16
16
16
17
18
19
20
21
22
23
23
24
24
25
26
27
27
1
Breather pipe
864510
£21,49 Unit Price incl. VAT
2
Exp.tnk-rad. Hose
864572
£8,16 Unit Price incl. VAT
3
Coolant tank
866136
£90,25 Unit Price incl. VAT
4
Cover
863943
£13,60 Unit Price incl. VAT
5
Hose clamp
00A00410501
£5,14 Unit Price incl. VAT
6
Hose clip D25x8,6
AP8101722
£7,85 Unit Price incl. VAT
7
Hose clamp D10,1
AP8101595
£3,97 Unit Price incl. VAT
8
Water cooler
867334
Not Available
9
Cover
861299
£37,20 Unit Price incl. VAT
10
Hex socket screw M6x20
AP8150044
£1,27 Unit Price incl. VAT
11
Washer 6,6x18x1,6*
AP8150015
£1,88 Unit Price incl. VAT
12
Spring plate M6
254485
£1,64 Unit Price incl. VAT
13
T bush *
AP8121679
£2,39 Unit Price incl. VAT
14
Hex socket screw M6x25
AP8150165
£0,89 Unit Price incl. VAT
15
Spring plate M6
254485
£1,64 Unit Price incl. VAT
16
Grommet
00008915020
Not Available
17
Water cooler-pump tube
866074
£22,19 Unit Price incl. VAT
18
Hose clip D25x8,6
AP8101722
£7,85 Unit Price incl. VAT
19
Hose clip D23,5x8*
AP8101927
£3,77 Unit Price incl. VAT
20
Head tube union
866073
£16,34 Unit Price incl. VAT
21
Water cooler hose union
866350
£22,57 Unit Price incl. VAT
22
3-way union
866351
£10,31 Unit Price incl. VAT
23
Hose clip D25x8,6
AP8101722
£7,85 Unit Price incl. VAT
24
Hose clamp D8
AP8120179
£1,27 Unit Price incl. VAT
25
Fuel pipe
CM200429
£13,72 Unit Price incl. VAT
26
Water pipe
00H03801961
£8,02 Unit Price incl. VAT
27
Hose clamp D8
AP8120179
£1,27 Unit Price incl. VAT

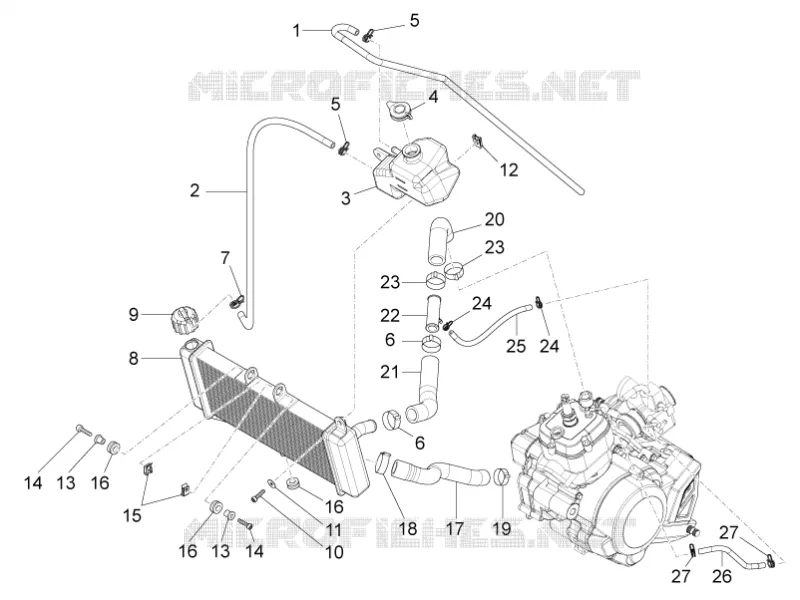

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
