1
Engine displacement
50
2
Model
RS4
3
Year
2013
4
Trim
RS4 50 2T
5
Parts Catalog
Foot rests
6
Parts Diagram
Parts Catalog
Exhaust pipe
by
Crankcases I
Foot rests
1
2
3
3
4
4
5
5
6
6
6
6
7
7
8
8
9
10
10
10
10
11
11
12
13
13
14
15
16
17
17
18
19
20
20
21
22
23
23
24
24
25
25
26
26
27
27
27
28
28
29
30
1
RH footrest support
897579
£48,30 Unit Price incl. VAT
2
LH footrest support
897578
Not Available
3
Low nut M8
AP8150431
£1,94 Unit Price incl. VAT
4
Screw w/ flange M8x40
AP8152290
£2,63 Unit Price incl. VAT
5
Footrest pin
AP8134829
£6,28 Unit Price incl. VAT
6
Footrest plate
890208
£10,82 Unit Price incl. VAT
7
Ball D6,35
AP8101861
£0,36 Unit Price incl. VAT
8
Coil compress. spring
AP8121133
£3,22 Unit Price incl. VAT
9
Rear footrest, LH
AP8146865
£57,98 Unit Price incl. VAT
10
Stop ring
AP8152409
£1,38 Unit Price incl. VAT
11
Rear footrest, RH
AP8146864
£57,98 Unit Price incl. VAT
12
Footrest pin
AP8121134
£3,25 Unit Price incl. VAT
13
Footrest pin
CM228401
£3,17 Unit Price incl. VAT
14
RH Foot rests
AP8132957
Not Available
15
RH front footrest spring
AP8121939
£15,59 Unit Price incl. VAT
16
LH front footrest guard
866142
£11,83 Unit Price incl. VAT
17
RH front footrest guard
866141
£11,83 Unit Price incl. VAT
18
RH front footrest bracket
866138
Not Available
19
LH front footrest bracket
866139
Not Available
20
Screw w/ flange M5x12
AP8152272
£1,88 Unit Price incl. VAT
21
LH Foot rests
AP8132958
Not Available
22
LH front footrest spring
AP8121940
£15,59 Unit Price incl. VAT
23
Washer
00003515370
Not Available
24
Fork
866215
£22,31 Unit Price incl. VAT
25
Screw M8x26
AP8152196
£5,14 Unit Price incl. VAT
26
Self-locking nut M8
AP8152300
£1,94 Unit Price incl. VAT
27
Washer
AP8120592
£3,07 Unit Price incl. VAT
28
Hex socket screw M8x30
AP8150107
£1,94 Unit Price incl. VAT
29
LH front footrest bracket
899558
£65,26 Unit Price incl. VAT
30
RH front footrest bracket
899557
£72,79 Unit Price incl. VAT

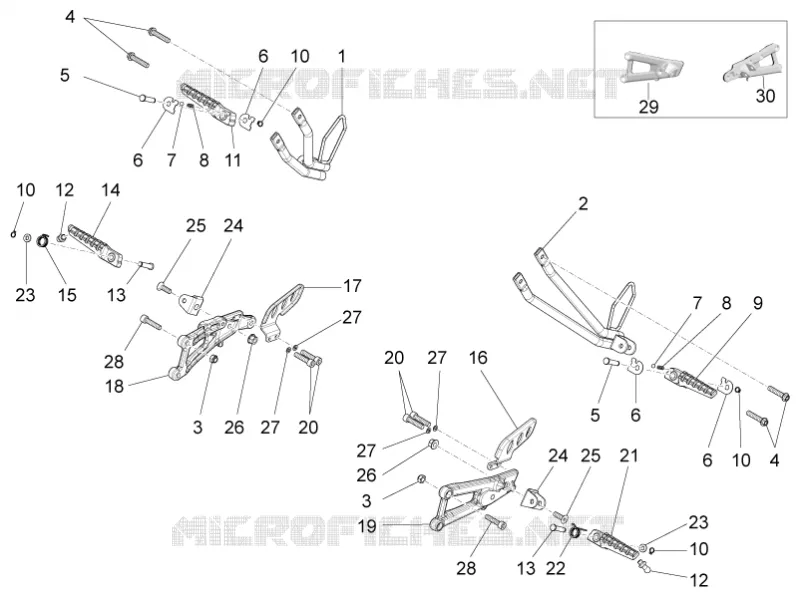

Find the detailed :label APRILIA diagram on this page. This exploded view allows you to identify the various components you need to maintain your machine and quickly find their original APRILIA part number.


The diagrams are not contractually binding. If you have any doubts, our professionals are available to answer your questions. When adding a part to your cart, make sure to order the desired quantity. The unit price shown is the price for each reference at a quantity of 1.
