Parts Catalog
Water pump
6

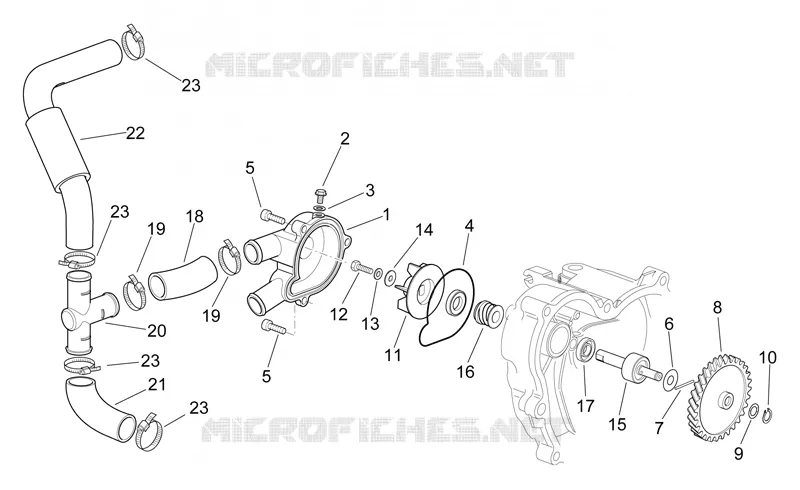

Parts Diagram
Parts Catalog
Crankcase
by
Oil pump
Water pump
1
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
19
20
21
22
23
23
23
23
1
Pump cover
AP8600228
Not Available
2
Water unload screw
AP8600229
Not Available
3
Gasket
AP8600230
£7,93 Unit Price incl. VAT
4
O-ring
AP8600231
£40,49 Unit Price incl. VAT
5
screw
AP8600232
Not Available
6
Washer
AP8600233
Not Available
7
Pin
AP8600234
Not Available
8
Water pump gear
AP8600235
Not Available
9
Washer 17x26x1
AP8600237
Not Available
10
Circlip
AP8600236
Not Available
11
Impeller
AP8600238
Not Available
12
screw M6x13
AP8600239
Not Available
13
Washer
AP8600240
£17,86 Unit Price incl. VAT
14
Washer
AP8600241
Not Available
15
Water pump shaft assy.
AP8600242
Not Available
16
Mechanical gasket
AP8600243
Not Available
17
Oil seal 10x20x5
AP8600244
£47,15 Unit Price incl. VAT
18
Pump outlet water hose
AP8600245
Not Available
19
Hose clamp
AP8600246
Not Available
20
3-way union
AP8600247
Not Available
21
Water hose union/RH cyl.
AP8600248
Not Available
22
Water hose union/LH cyl.
AP8600249
Not Available
23
Hose clip
AP8600250
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
