1
Engine displacement
250
2
Model
RS
3
Year
2001
4
Trim
RS 250
5
Parts Catalog
Water cooler
6

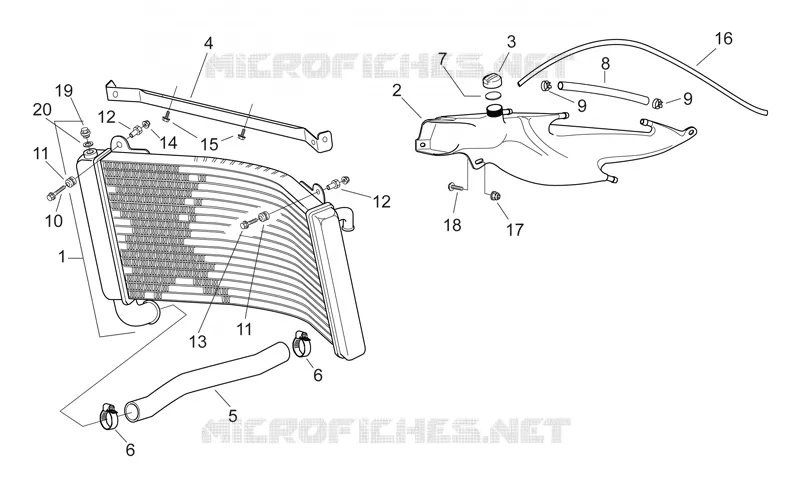

Parts Diagram
Parts Catalog
Controls II
by
Thermostat
Water cooler
1
2
3
4
5
6
6
7
8
9
9
10
11
11
12
12
13
14
15
16
17
18
19
20
1
Water cooler
AP8102634
Not Available
2
Expansion tank
AP8102745
Not Available
3
Cover
AP8120354
Not Available
4
Water cooler upper support
AP8134461
Not Available
5
Water cooler-pump tube
AP8120842
Not Available
6
Hose clamp 25-40 h8
AP8101661
Not Available
7
Gasket
AP8220191
Not Available
8
pipe 7,5x12,5
AP8144110
Not Available
9
Hose clip, green D11x6,6x1
AP8120446
£3,25 Unit Price incl. VAT
10
Screw w/ flange M6x25
AP8152280
£2,48 Unit Price incl. VAT
11
Rubber spacer
AP8120030
£1,38 Unit Price incl. VAT
12
T bush *
AP8121731
£3,01 Unit Price incl. VAT
13
Screw w/ flange M6x16
AP8152278
£1,91 Unit Price incl. VAT
14
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
15
Screw w/ flange M6x12
AP8152277
£1,88 Unit Price incl. VAT
16
pipe 5x9
AP8220402
£28,99 Unit Price incl. VAT
17
Self-locking nut M6
AP8152299
£1,88 Unit Price incl. VAT
18
Screw w/ flange M6x16
AP8152246
£4,03 Unit Price incl. VAT
19
Cover
AP8123929
£28,46 Unit Price incl. VAT
20
Washer
AP8123930
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
