1
Engine displacement
250
2
Model
RS
3
Year
2001
4
Trim
RS 250
5
Parts Catalog

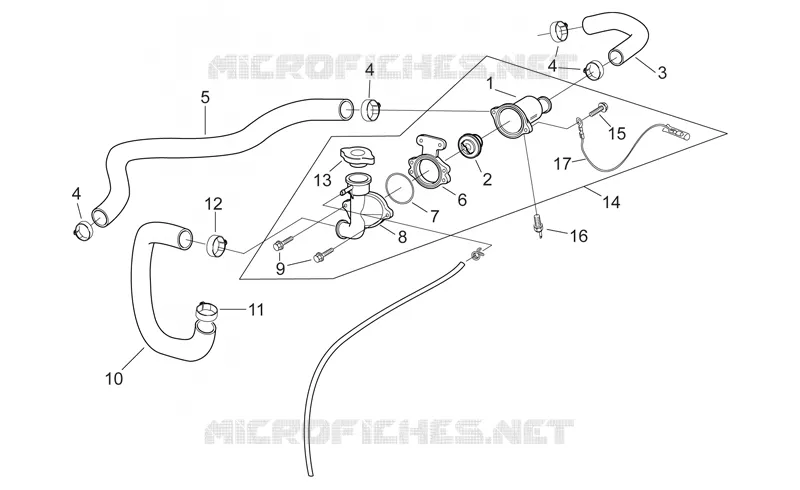

Thermostat
6
Parts Diagram
Parts Catalog
Water cooler
by
Air box
Thermostat
1
2
3
4
4
4
5
6
7
8
9
10
11
12
13
14
15
16
17
1
Thermostat place
AP8600258
Not Available
2
Thermostat
AP8600259
Not Available
3
Thermostat-up. head pipe
AP8120840
£16,93 Unit Price incl. VAT
4
Hose clip D25x8,6
AP8101722
£7,85 Unit Price incl. VAT
5
Thermostat-low. head pipe
AP8120841
Not Available
6
Thermostat holder supp.
AP8600257
Not Available
7
O-ring
AP8600255
Not Available
8
Filler cap
AP8600254
Not Available
9
screw M6x16
AP8600256
Not Available
10
Thermostat-cooler pipe
AP8120843
Not Available
11
Hose clip D28x8,6*
AP8120536
£3,08 Unit Price incl. VAT
12
Hose clip 290x8,9
AP8201409
£5,15 Unit Price incl. VAT
13
Water cooler filler cap
AP8600253
Not Available
14
Thermostat w. Support
AP8112968
Not Available
15
screw M6x20
AP8600260
Not Available
16
Thermistor
AP8212708
£61,66 Unit Price incl. VAT
17
Ground-thermostat lead
AP8600400
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
