Central body FOR RS 250 FROM 2000

Free shipping for all orders to United Kingdom over £150! See conditions.

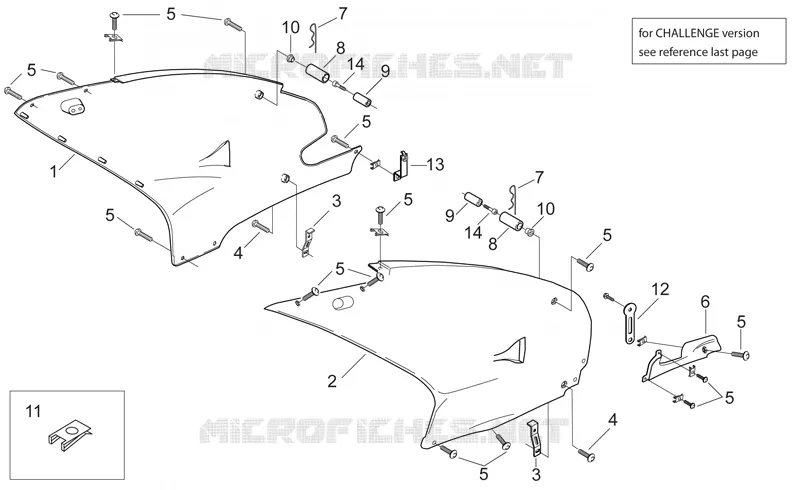

Central body

1

RH side panel, r./g.

AP8139967

Not Available

1

RH side panel, black

AP8139382

Not Available

1

RH side panel, d.black

AP8149891

Not Available

1

RH side panel, r./b.

AP8139780

Not Available

1

RH side panel, black

AP8168788

Not Available

1

RH side panel, t. red

AP8138902

Not Available

1

RH side panel, yell./grey

AP8149016

Not Available

1

RH side panel, r./b.

AP8149001

Not Available

2

LH side panel, black

AP8139383

Not Available

2

LH side panel, yell./grey

AP8149017

Not Available

2

LH side panel, t. red

AP8138904

Not Available

2

LH side panel, black d.

AP8149892

Not Available

2

LH side panel, black

AP8168789

Not Available

2

LH side panel, r./b.

AP8139781

Not Available

2

LH side panel, r./b.

AP8149002

Not Available

2

LH side panel, r./g.

AP8139968

Not Available

3

Lower plate fairing

AP8134332

Not Available

4

Screw w/ flange M6x16

AP8152278

£1,91 Unit Price incl. VAT

5

Screw w/ flange M5x16

AP8152298

£3,48 Unit Price incl. VAT

6

LH side panel extens., grey

AP8139969

Not Available

6

LH side panel extens., black

AP8139384

Not Available

6

LH side panel extens., jaune

AP8149018

Not Available

6

LH side panel extens., red

AP8139782

Not Available

6

LH side panel extens., red

AP8139065

Not Available

6

LH side panel extens., black

AP8168790

Not Available

7

Split pin

AP8201287

£6,70 Unit Price incl. VAT

8

Lat.frng fix.pipe

AP8120699

Not Available

9

Special bush *

AP8121867

Not Available

10

Rubber w/ insert

AP8120531

£6,84 Unit Price incl. VAT

11

Clip M5

AP8102375

£2,20 Unit Price incl. VAT

12

Upper LH fair.supp. plate

AP8134463

Not Available

13

Upper RH fair.supp. plate

AP8134462

Not Available

14

Hex socket screw M6x25

AP8150165

£0,89 Unit Price incl. VAT

The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
