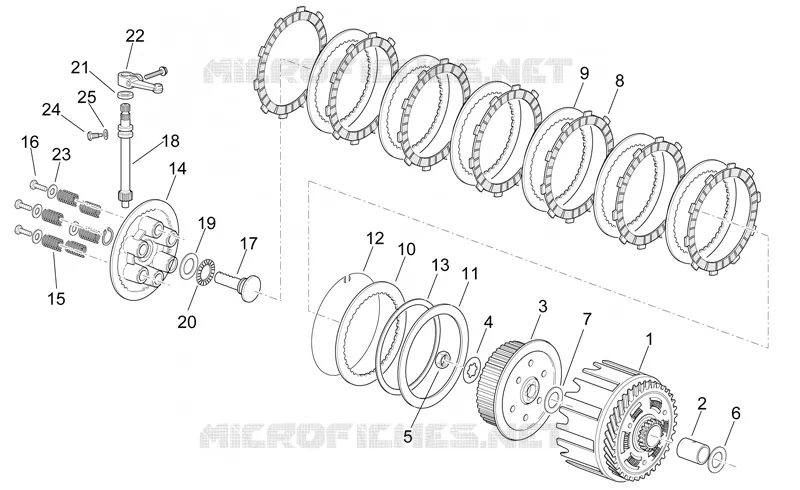

Clutch
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
1
Clutch drum
AP8600261
Not Available
2
Clutch drum spacer
AP8600262
Not Available
3
Clutch hub
AP8600263
Not Available
4
Washer
AP8600264
Not Available
5
Nut
AP8600265
£12,62 Unit Price incl. VAT
6
Washer 20x36x3
AP8600266
Not Available
7
Washer 20x36x2
AP8600267
Not Available
8
Lined clutch disc sp.3
AP8600268
Not Available
9
Metallic clutch disc sp.1.6
AP8600269
Not Available
10
Metallic clutch disc sp.2
AP8600270
Not Available
11
Elastic clutch plate ring
AP8600271
Not Available
12
Clutch stop ring
AP8600272
Not Available
13
Elastic clutch plate
AP8600273
Not Available
14
Clutch pressure plate
AP8600274
Not Available
15
Clutch spring
AP8600275
Not Available
16
screw
AP8600276
Not Available
17
Clutch control washer
AP8600277
Not Available
18
Clutch shaft
AP8600278
Not Available
19
Washer 15,5x28x1
AP8600279
Not Available
20
Bearing 15x28x2
AP8600280
£21,04 Unit Price incl. VAT
21
Oil seal 10x17x5
AP8600281
Not Available
22
Clutch lever
AP8600282
Not Available
23
Circlip
AP8600286
Not Available
24
screw
AP8600284
Not Available
25
Washer
AP8600285
Not Available
The diagrams are provided for reference only. If in doubt, our specialists are available to answer your questions. When adding a part to your cart, please make sure to select the desired quantity. The unit price shown is the price for one unit of each part number.
